ECC-A3D151JGE
RoHS
/
Package Radial, Disc
Category Capacitors / Ceramic Capacitors
Description

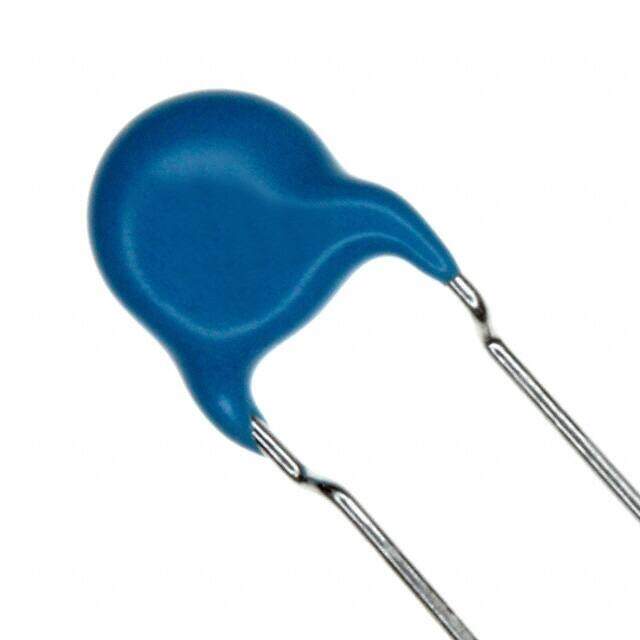

Radial Disc CERAMIC CAPACITOR KGE 2kV 150pF ±5% SL/GP
PDF
/
Inventory: 3827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5.5mm
Height Seated (Max) 0.512 13.00mm
Height 9mm
Technical
Lead/Base Style Formed Leads
Lead Style Formed Leads
Size Code 3522
Rated (DC) Voltage (URdc) 2000V
Multilayer No
Temperature Characteristics Code SL
Lead Spacing 0.295 7.50mm
Lead Length 20mm
Capacitor Type CERAMIC CAPACITOR
Lead Pitch 7.493mm
Reach Compliance Code unknown
Terminal Pitch 7.5mm
Voltage - Rated DC 2kV
Capacitance 150pF
HTS Code 8532.23.00.60
Applications General Purpose
Terminal Finish Tin (Sn)
Temperature Coefficient SL/GP
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature High Voltage
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.354Dia 9.00mm
Series KGE
Published 2002
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Dielectric Material CERAMIC
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
