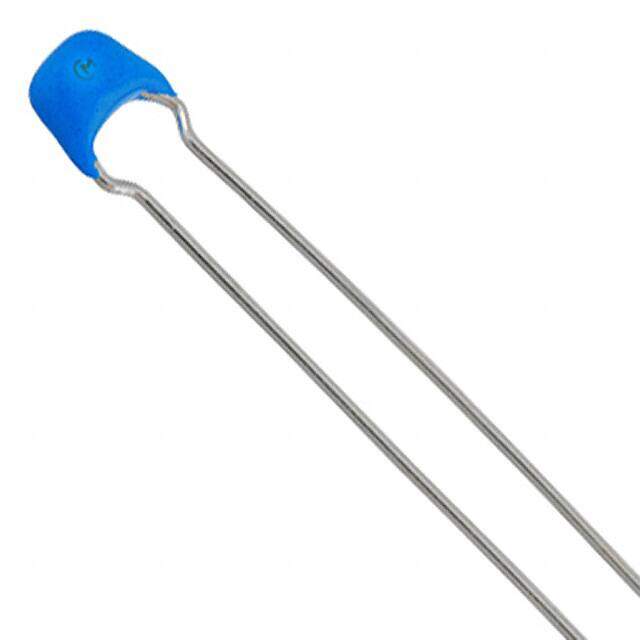

RPE5C2A331J2S1A03A image
Favorite
RPE5C2A331J2S1A03A image
Favorite

RPE5C2A331J2S1A03A

Murata Electronics
RoHS
/
Package Radial
Category Capacitors / Ceramic Capacitors
Description Radial RPE 100V 330pF ±5% C0G NP0
PDF
/
Inventory: 4863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Lifecycle Status DISCONTINUED (Last Updated: 5 months ago)

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Material Ceramic

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Box (TB)
Series RPE
Size / Dimension 0.197Lx0.098W 5.00mmx2.50mm
Tolerance ±5%
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Tin/Copper (Sn/Cu)
Applications General Purpose
HTS Code 8532.24.00.60
Capacitance 330pF
Voltage - Rated DC 100V
Packing Method AMMO PACK
Depth 2.5mm
Lead Pitch 2.5mm
Dielectric C0G
Lead Spacing 0.098 2.50mm
Temperature Characteristics Code C0G
Multilayer Yes
Size Code 2010
Voltage 100V
Lead Style Formed Leads - Kinked
Lead/Base Style Kinked

Dimensions

Height 3.5mm
Height Seated (Max) 0.197 5.00mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
