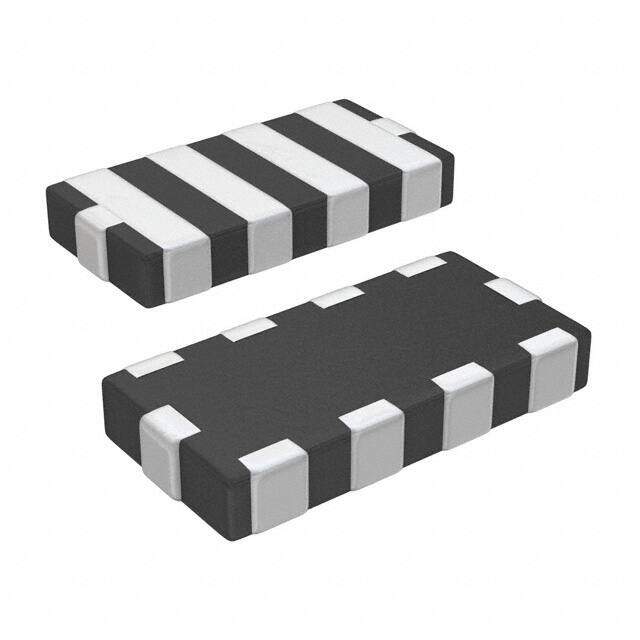

LLM315R71C224MA11K image
Favorite
LLM315R71C224MA11K image
Favorite

LLM315R71C224MA11K

Murata Electronics
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description 1206 (3216Metric) LLM 16V 0.22muF ±20% X7R
PDF
/
Inventory: 978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Thickness 500μm
Thickness (Max) 0.022 0.55mm
Length 3.2mm
Height 500μm

Technical

Multilayer Yes
Temperature Characteristics Code X7R
Case Code (Imperial) 1206
Case Code (Metric) 3216
Depth 1.6mm
Packing Method TR, EMBOSSED, 13 INCH
Voltage - Rated DC 16V
Capacitance 0.22μF
HTS Code 8532.24.00.20
Applications Bypass, Decoupling
Composition Ceramic
Temperature Coefficient X7R
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Low ESL (Multi-Terminal)
Tolerance ±20%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series LLM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount, MLCC
Mount Surface Mount
