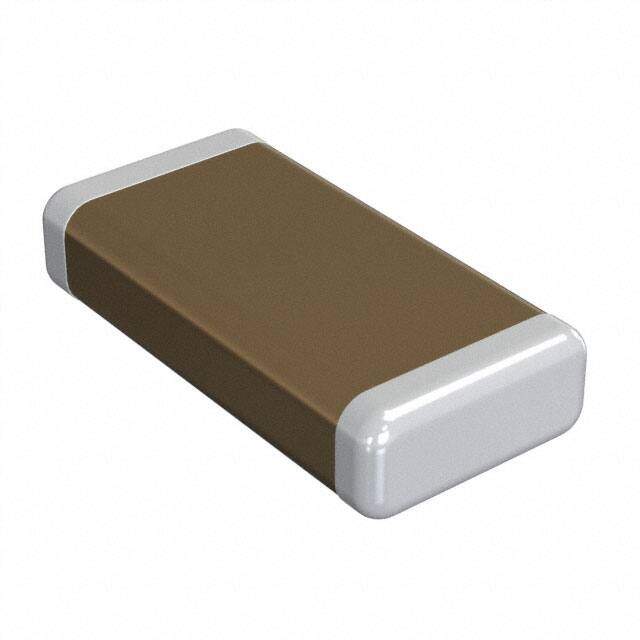

GRM3166T1H180JD01D
RoHS
/
Package 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description
1206 (3216Metric) CERAMIC CAPACITOR GRM 50V 18pF ±5% T2H
PDF
/
Inventory: 6334
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 711.2μm
Thickness (Max) 0.028 0.70mm
Length 3.2mm
Height 600μm
Technical
Multilayer Yes
Temperature Characteristics Code T2H
Capacitor Type CERAMIC CAPACITOR
Case Code (Imperial) 1206
Case Code (Metric) 3216
Depth 1.6mm
Packing Method TR, PAPER, 7 INCH
Voltage - Rated DC 50V
Capacitance 18pF
HTS Code 8532.24.00.20
Applications General Purpose
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Temperature Coefficient T2H
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series GRM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Dielectric Material CERAMIC
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount, MLCC
Mount Surface Mount
