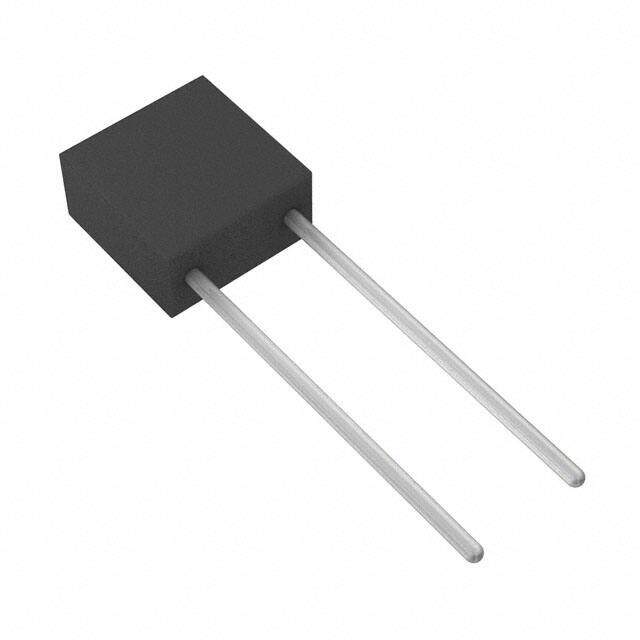

ARR07B105KGS
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Ceramic Capacitors
Description
ARR Indust X7R HT200C CERAMIC CAPACITOR Radial ceramic capacitor 0.300Lx0.100W 7.62mmx2.54mm X7R ±10% 1muF
PDF
/
Buying Options
Total Price: USD $130.08
Unit Price: USD $130.082132
≥1 USD $130.082132
≥200 USD $51.904189
≥500 USD $50.169848
≥1000 USD $49.312524
Inventory: 8154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.81mm
Height Seated (Max) 0.300 7.62mm
Height 7.62mm
Technical
Custom Capabilities Other Tolerances Available Upon Request
Dissipation Factor 2.5 %
Lead Style Straight
Size Code 3015
Lead Diameter 508 μm
Temperature Characteristics Code X7R
Lead Spacing 0.200 5.08mm
Capacitor Type CERAMIC CAPACITOR
Lead Pitch 5.08mm
Reach Compliance Code not_compliant
Voltage - Rated DC 50V
Capacitance 1μF
Applications General Purpose
Terminal Finish Gold (Au)
Temperature Coefficient X7R
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature High Temperature
JESD-609 Code e4
Tolerance ±10%
Size / Dimension 0.300Lx0.100W 7.62mmx2.54mm
Series ARR Indust X7R HT200C
Published 2014
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Dielectric Material CERAMIC
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 44 Weeks
