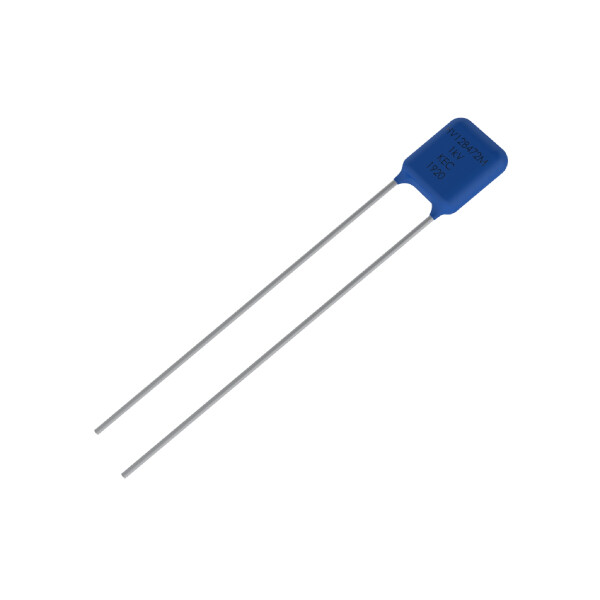

20HV21B472KCM image
Favorite
20HV21B472KCM image
Favorite

20HV21B472KCM

KEMET
RoHS
/
Package Dipped
Category Capacitors / Ceramic Capacitors
Description HV-HIGH VOLT CERAMIC CAPACITOR Dipped ceramic capacitor -/+15ppm/Cel ppm/C 10% 4.7nF
PDF
/
Inventory: 7773
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Package / Case Dipped

Technical

Packaging Bulk
Series HV-HIGH VOLT
Tolerance 10%
JESD-609 Code e0
Part Status Active
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Temperature Coefficient -/+15ppm/Cel ppm/°C
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Capacitance 4.7nF
Reach Compliance Code not_compliant
Reference Standard MIL-PRF-49467
Lead Pitch 5.59mm
Capacitor Type CERAMIC CAPACITOR
Dielectric X7R
Temperature Characteristics Code X7R
Rated (DC) Voltage (URdc) 2000V
Lead Diameter 635 μm
Size Code 3225

Dimensions

Height 7.11mm
Length 8.13mm
Width 6.35mm

Compliance

RoHS Status Non-RoHS Compliant
