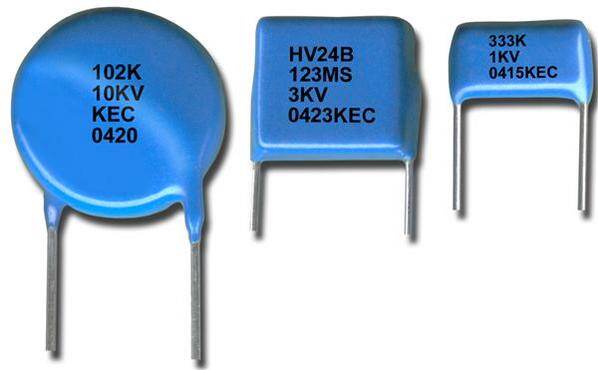

10HV24B104KCM
RoHS
/
Package Radial
Category Capacitors / Ceramic Capacitors
Description
HV-HIGH VOLT CERAMIC CAPACITOR Radial ceramic capacitor 15% ppm/C 10% 100nF 1kV
PDF
/
Inventory: 7019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 6.858mm
Length 14.478mm
Height 12.7mm
Technical
Lead/Base Style Straight
Dissipation Factor 2.5 %
Size Code 5727
Lead Diameter 635 μm
Rated (DC) Voltage (URdc) 1000V
Multilayer Yes
Temperature Characteristics Code X7R
Dielectric X7R
Capacitor Type CERAMIC CAPACITOR
Lead Pitch 12.065mm
Reference Standard MIL-PRF-49467
Terminal Pitch 12.06mm
Voltage - Rated DC 1kV
Capacitance 100nF
HTS Code 8532.24.00.60
Additional Feature MIL-PRF-49467
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb)
Temperature Coefficient 15% ppm/°C
ECCN Code EAR99
Number of Terminations 2
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance 10%
Series HV-HIGH VOLT
Packaging Bulk
Physical
Terminal Shape WIRE
Package / Case Radial
Mount Through Hole
