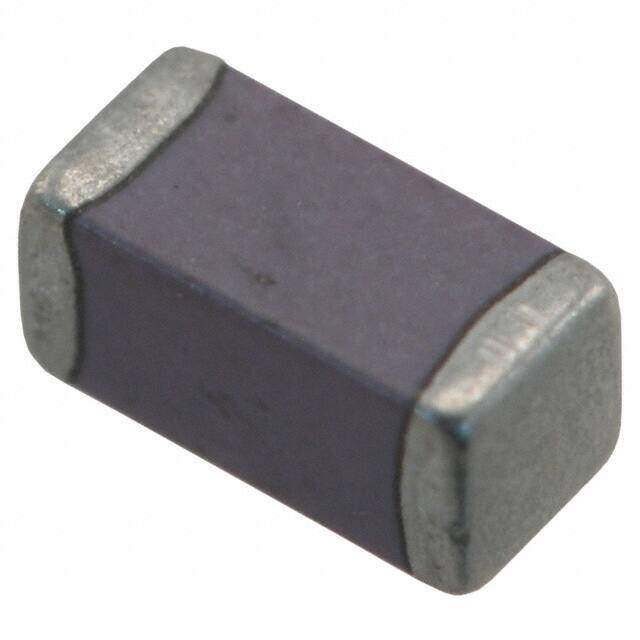

501R18N471JV4E
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description
1206 (3216Metric) ceramic capacitor 500V 470pF ±5% C0G NP0
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.78505
≥1 USD $1.78505
≥10 USD $1.4649
≥100 USD $1.41835
≥500 USD $1.37275
≥1000 USD $1.32715
Inventory: 2575
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Ceramic
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2004
Size / Dimension 0.125Lx0.062W 3.17mmx1.57mm
Tolerance ±5%
JESD-609 Code e3
Feature High Voltage
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 470pF
Voltage - Rated DC 500V
Packing Method TR, EMBOSSED, 7 INCH
Depth 1.57mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Dimensions
Height 1.7mm
Length 3.17mm
Thickness (Max) 0.067 1.70mm
Thickness 1.7018mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
