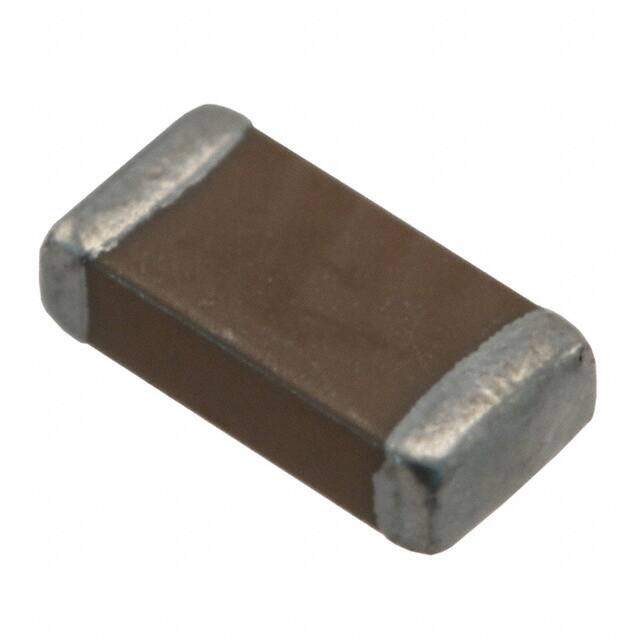

202R18N101JF4E
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description
1206 (3216Metric) CERAMIC CAPACITOR PolyTerm? 2000V 2kV 100pF ±5% C0G NP0
PDF
/
Inventory: 3751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series PolyTerm?
Size / Dimension 0.125Lx0.062W 3.17mmx1.57mm
Tolerance ±5%
JESD-609 Code e3
Feature Soft Termination, High Voltage
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications Boardflex Sensitive
Voltage - Rated 2000V 2kV
HTS Code 8532.24.00.20
Capacitance 100pF
Packing Method TR, EMBOSSED, 7 INCH
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code C0G
Multilayer Yes
Rated (DC) Voltage (URdc) 2000V
Dimensions
Thickness (Max) 0.050 1.27mm
Compliance
RoHS Status ROHS3 Compliant
