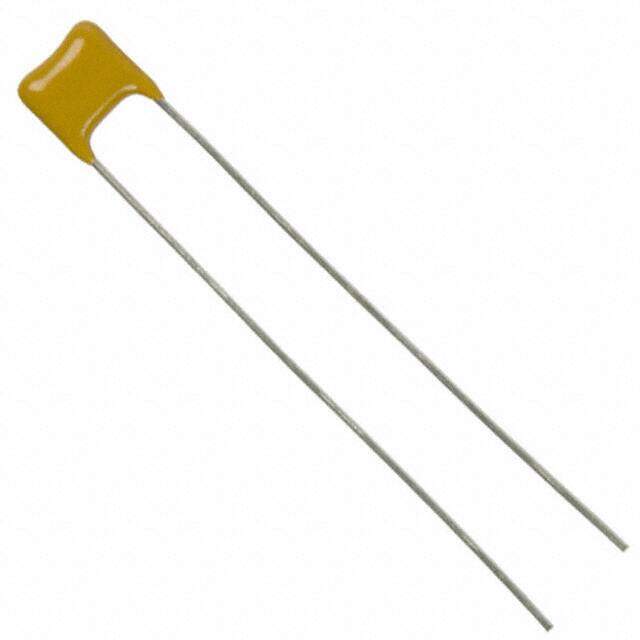

SR305C105KAT image
Favorite
SR305C105KAT image
Favorite

SR305C105KAT

AVX Corporation
RoHS
RoHS RoHS compliant
Package Radial
Category Capacitors / Ceramic Capacitors
Description Radial CERAMIC CAPACITOR SkyCap? SR 50V 1muF ±10% X7R
PDF
/
Inventory: 9449
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Thickness 3.81mm
Height Seated (Max) 0.360 9.14mm
Height 7.62mm

Technical

Lead Style Straight
Size Code 3015
Lead Diameter 508 μm
Multilayer No
Temperature Characteristics Code X7R
Lead Spacing 0.200 5.08mm
Capacitor Type CERAMIC CAPACITOR
Lead Pitch 5.08mm
Depth 3.81mm
Voltage - Rated DC 50V
Capacitance 1μF
HTS Code 8532.23.00.60
Applications General Purpose
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Temperature Coefficient X7R
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.300Lx0.150W 7.62mmx3.81mm
Series SkyCap? SR
Published 2013
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Dielectric Material CERAMIC
Terminal Shape WIRE
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 11 Weeks
