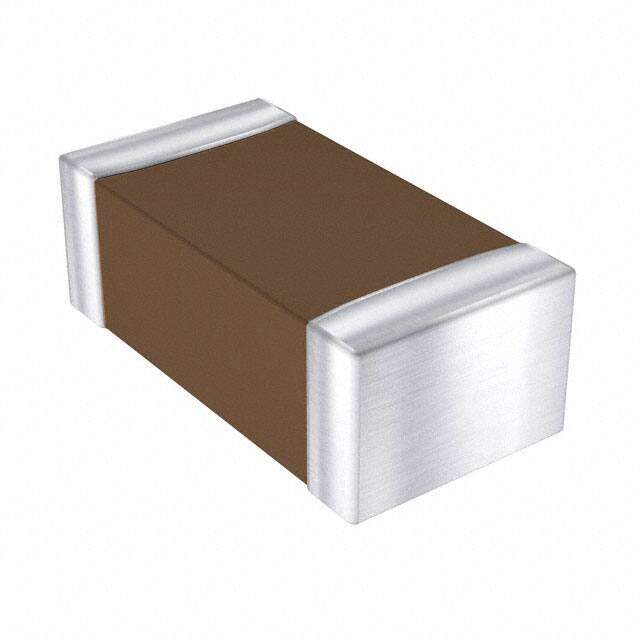

LT03YD105KAT2S
RoHS
/
Package 0603 (1608 Metric)
Category Capacitors / Ceramic Capacitors
Description
0603 (1608Metric) CERAMIC CAPACITOR LT 16V 1muF ±10% X5R
PDF
/
Inventory: 4424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 558.8μm
Thickness (Max) 0.022 0.56mm
Width 0.81mm
Length 1.6mm
Height 0.56mm
Technical
Multilayer Yes
Temperature Characteristics Code X5R
Capacitor Type CERAMIC CAPACITOR
Case Code (Imperial) 0603
Case Code (Metric) 1608
Depth 810μm
Packing Method TR, PAPER, 7 INCH
Voltage - Rated DC 16V
Capacitance 1μF
Applications General Purpose
Terminal Finish Tin/Nickel (Sn/Ni)
Temperature Coefficient X5R
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Low Profile
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.063Lx0.032W 1.60mmx0.81mm
Series LT
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~85°C
Physical
Dielectric Material CERAMIC
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount, MLCC
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
