12101C224MAT4A
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Capacitors / Ceramic Capacitors
Description

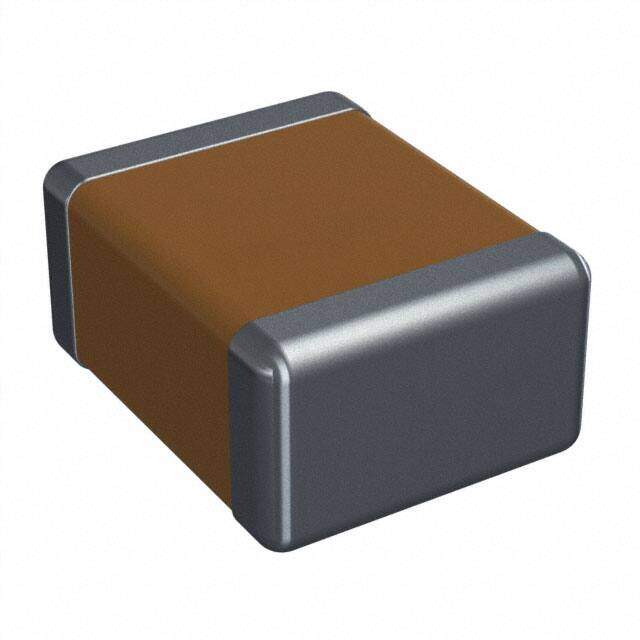

1210 (3225Metric) CERAMIC CAPACITOR ceramic capacitor 100V 0.22muF ±20% X7R
PDF
/
Inventory: 4808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material CERAMIC
Weight 15.989131mg
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 0.22μF
Voltage - Rated DC 100V
Packing Method TR, EMBOSSED, 13 INCH
Depth 2.5mm
Case Code (Metric) 3225
Case Code (Imperial) 1210
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Dimensions
Height 1.52mm
Length 3.3mm
Thickness (Max) 0.060 1.52mm
Thickness 1.524mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
