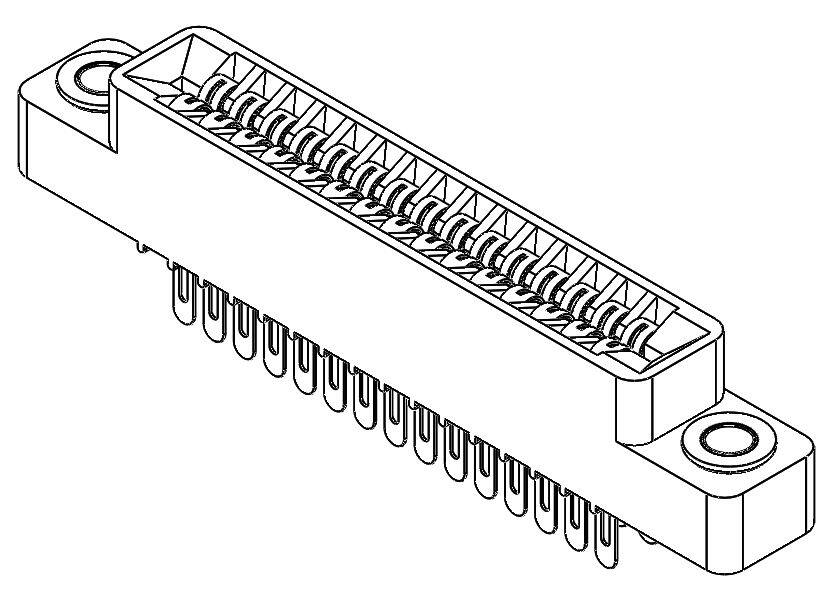

EEC30DREF-S734 image
Favorite
EEC30DREF-S734 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS 0.100
PDF
/
Inventory: 1411
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Card Thickness 0.031 0.79mm
Plating Thickness 100μin
Contact Finish Thickness 100.0μin 2.54μm

Technical

Flange Feature Top Mount Opening, Floating Bobbin, 0.116 (2.95mm) Dia
Number of Positions/Bay/Row 30
Read Out Dual
Card Type Non Specified - Dual Edge
Rated Current (Signal) 3A
Body Depth 0.431 inch
Body Breadth 0.33 inch
Body Length or Diameter 3.875 inch
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL
Total Number of Contacts 60
Pitch 0.100 2.54mm
Contact Type Full Bellows
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 2
Color Blue
Number of Positions 60
Connector Type Full Bellows
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Published 2016
Packaging Tray
Operating Temperature -65°C~125°C

Physical

Material - Insulation Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount
Mount Panel
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
