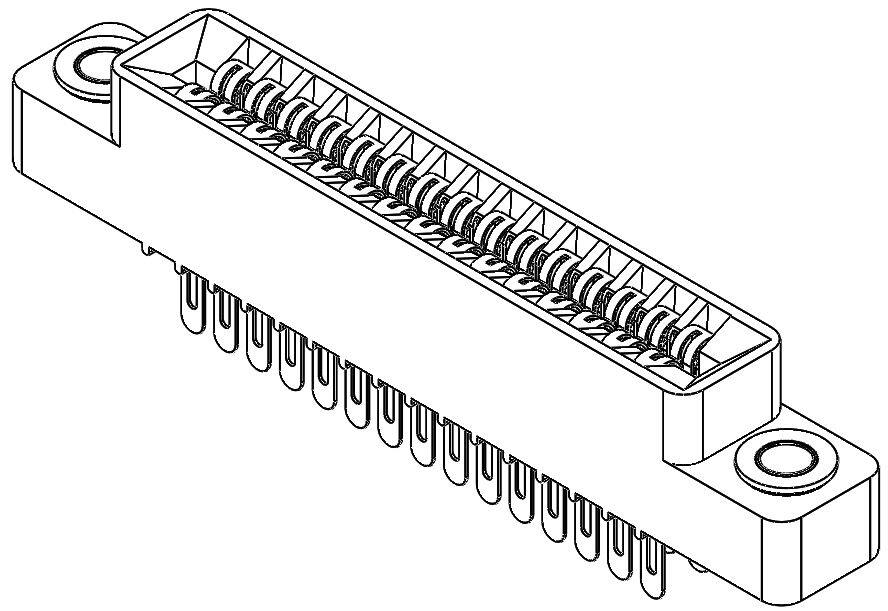

EEC18DREF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description
CONN EDGE DUAL FMALE 36POS 0.100
PDF
/
Inventory: 7844
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Panel
Mounting Type Panel Mount
Material - Insulation Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 2016
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Connector Type Full Bellows
Number of Positions 36
Color Blue
Number of Rows 2
Gender Female
Subcategory Headers and Edge Type Connectors
Contact Type Full Bellows
Pitch 0.100 2.54mm
Total Number of Contacts 36
Reference Standard UL
Contact Finish Tin
Reliability COMMERCIAL
Body Breadth 0.33 inch
Flange Feature Top Mount Opening, Floating Bobbin, 0.116 (2.95mm) Dia
Number of Positions/Bay/Row 18
Read Out Dual
Card Type Non Specified - Dual Edge
Rated Current (Signal) 3A
Body Depth 0.431 inch
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Card Thickness 0.062 1.57mm
Plating Thickness 100μin
Contact Finish Thickness 100.0μin 2.54μm
