ECC70DCWI
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description

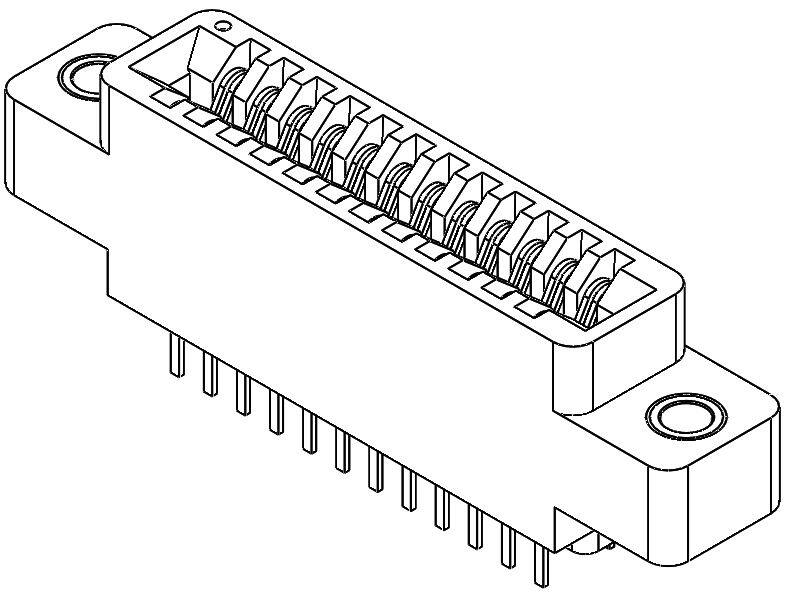

CONN EDGE DUAL FMALE 140POS .100
PDF
/
Inventory: 3521
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Material - Insulation Polybutylene Terephthalate (PBT)
Mounting Option 1 LOCKING
Technical
Operating Temperature -65°C~125°C
Packaging Tray
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type CARD EDGE CONNECTOR
Number of Positions 140
Number of Rows 2
Gender Female
Subcategory Headers and Edge Type Connectors
Contact Type Hairpin Bellows
Pitch 0.100 2.54mm
Total Number of Contacts 140
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 7.835 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.37 inch
Body Depth 0.61 inch
Rated Current (Signal) 3A
Card Type Non Specified - Dual Edge
Read Out Dual
Number of Positions/Bay/Row 70
Flange Feature Top Mount Opening, Threaded Insert, 4-40
Mating Contact Row Spacing 0.1 inch
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Card Thickness 0.062 1.57mm
Compliance
RoHS Status ROHS3 Compliant
