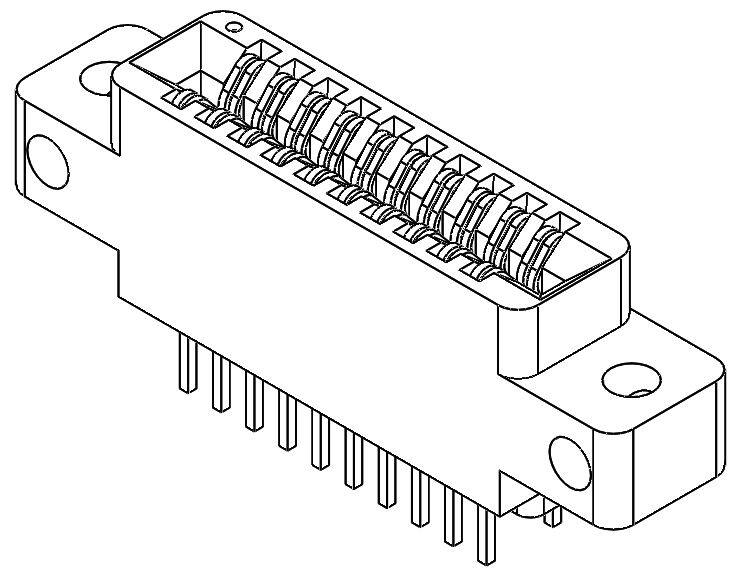

ECC55DCMS image
Favorite
ECC55DCMS image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 110POS .100
PDF
/
Inventory: 4386
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Length - Termination 0.56 inch
Card Thickness 0.062 1.57mm
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm

Technical

Flange Feature Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Number of Positions/Bay/Row 55
Read Out Dual
Card Type Non Specified - Dual Edge
Rated Current (Signal) 3A
Body Depth 0.61 inch
Body Breadth 0.37 inch
Number Of PCB Rows 2
Body Length or Diameter 6.335 inch
Reliability COMMERCIAL
Contact Finish Gold
Number of Conductors ONE
Total Number of Contacts 110
Pitch 0.100 2.54mm
Contact Type Hairpin Bellows
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 2
Color Blue
Number of Positions 110
Connector Type Hairpin Bellows
Termination Wire Wrap
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Published 2015
Packaging Tray
Operating Temperature -65°C~125°C

Physical

Material - Insulation Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
