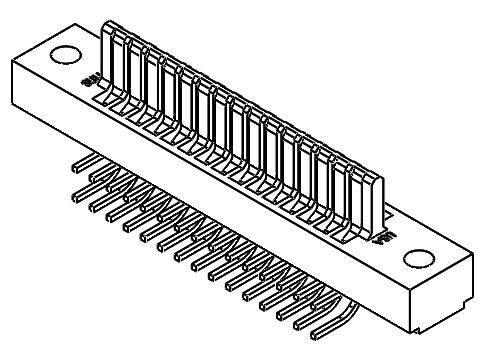

ECC36MMVD-S189
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description
CONN CARDEDGE MALE 72POS 0.100
PDF
/
Inventory: 8494
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Material - Insulation Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -65°C~125°C
Packaging Tray
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type CARD EDGE CONNECTOR
Number of Positions 72
Number of Rows 2
Gender Male
Pitch 0.100 2.54mm
Contact Finish Gold
Card Type Fits Female Edgecards
Read Out Dual
Number of Positions/Bay/Row 36
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.125 (3.18mm) Dia
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Card Thickness 0.062 1.57mm
Compliance
RoHS Status ROHS3 Compliant
