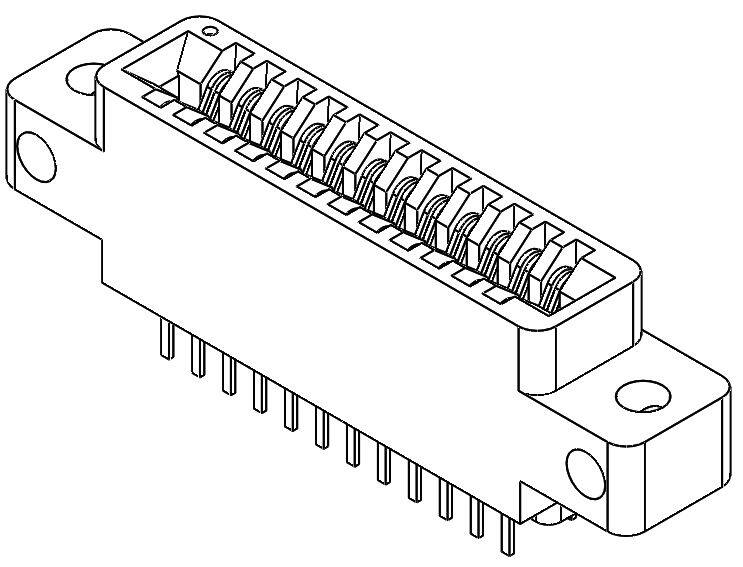

ECC08DCWS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description
CONN EDGE DUAL FMALE 16POS 0.100
PDF
/
Inventory: 934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Card Thickness 0.062 1.57mm
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Technical
Mating Contact Row Spacing 0.1 inch
Flange Feature Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Number of Positions/Bay/Row 8
Read Out Dual
Card Type Non Specified - Dual Edge
Rated Current (Signal) 3A
Body Depth 0.61 inch
Body Breadth 0.37 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Body Length or Diameter 1.635 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Total Number of Contacts 16
Pitch 0.100 2.54mm
Contact Type Hairpin Bellows
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 2
Number of Positions 16
Connector Type Hairpin Bellows
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2015
Packaging Tray
Operating Temperature -65°C~125°C
Physical
Material - Insulation Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
