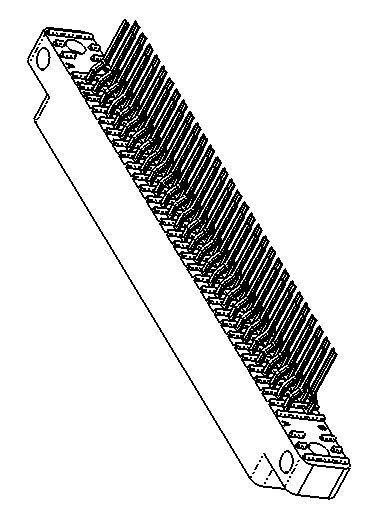

ABC06DRYS-S13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description
CONN EDGE DUAL FMALE 12POS 0.100
PDF
/
Inventory: 7015
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Card Thickness 0.062 1.57mm
Plating Thickness 10μin
Contact Finish Thickness 10.0μin 0.25μm
Technical
Flange Feature Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Number of Positions/Bay/Row 6
Read Out Dual
Card Type Non Specified - Dual Edge
Contact Resistance 30mOhm
Rated Current (Signal) 3A
Body Breadth 0.33 inch
Number Of PCB Rows 2
Body Length or Diameter 1.475 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Total Number of Contacts 12
Pitch 0.100 2.54mm
Contact Type Full Bellows
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 2
Number of Positions 12
Connector Type CARD EDGE CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Card Extender
JESD-609 Code e3
Published 2016
Packaging Tray
Operating Temperature -65°C~150°C
Physical
Mounting Option 1 LOCKING
Material - Insulation Polyphenylene Sulfide (PPS)
Mounting Type Board Edge, Straddle Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
