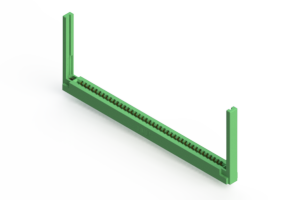

305-080-521-568

EDAC Inc.
RoHS
/
Package /
Category Connectors, Interconnects / Card Edge Connectors - Edgeboard Connectors
Description Dual Row Female Thermoplastic Polyester .330" (8.38mm) Card Slot Depth (Card Type) Connector .046" x .013" 1.17mmx0.33mm
PDF
/
Inventory: 4116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Insulator Card Slot Length Stard Length per MIL-C-21097
Contact Tail Size .046" x .013" 1.17mmx0.33mm
Insulator Style .330" (8.38mm) Card Slot Depth
Contact Tail Length .125" 3.18mm
Rows Dual Row
Contact Description P.C. Tail
Position 80
Pitch .156" 3.96mm
Gender Female
Color Green

Physical

Mounting Option .344" (8.74mm) Offset Card Guides
Material Thermoplastic Polyester
