ECJ-TVB1E472M
RoHS
/
Package 0805 (2012 Metric)
Category Capacitors / Capacitor Networks, Arrays
Description
0805 (2012Metric) ARRAY/NETWORK CAPACITOR ECJ-T 25V 4700pF ±20% X7R
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.66564
≥1 USD $0.66564
≥200 USD $0.266519
≥500 USD $0.257328
≥1000 USD $0.25339
Inventory: 3008
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Dielectric Material Ceramic
Technical
Packaging Tape & Reel (TR)
Published 2006
Series ECJ-T
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish TIN
Capacitance 4700pF
Voltage - Rated DC 25V
Packing Method TR, PAPER, 7 INCH
Number of Functions 4
Terminal Pitch 0.5mm
Reach Compliance Code unknown
Case Code (Metric) 2012
Case Code (Imperial) 0805
Operating Temperature (Max) 125°C
Operating Temperature (Min) -55°C
Capacitor Type ARRAY/NETWORK CAPACITOR
Number of Elements 1
Temperature Characteristics Code X7R
Multilayer Yes
Circuit Type Isolated
Number of Capacitors 4
Dimensions
Height Seated (Max) 0.037 0.95mm
Length 2mm
Width 1.25mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead

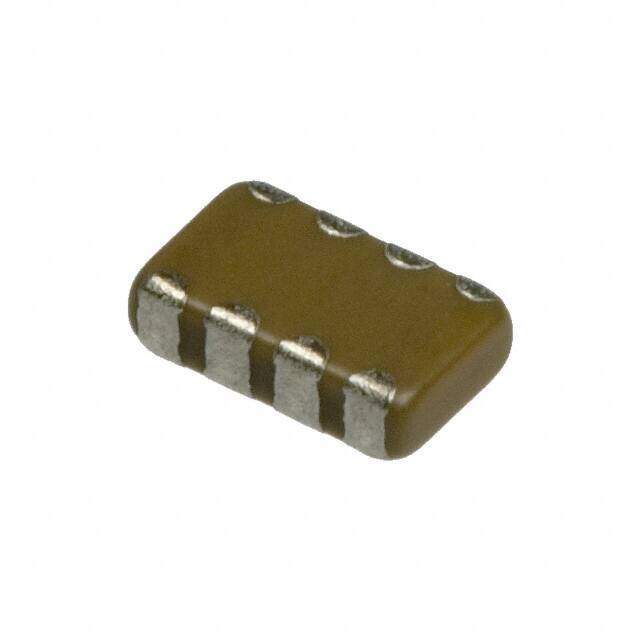

Alternative Model
