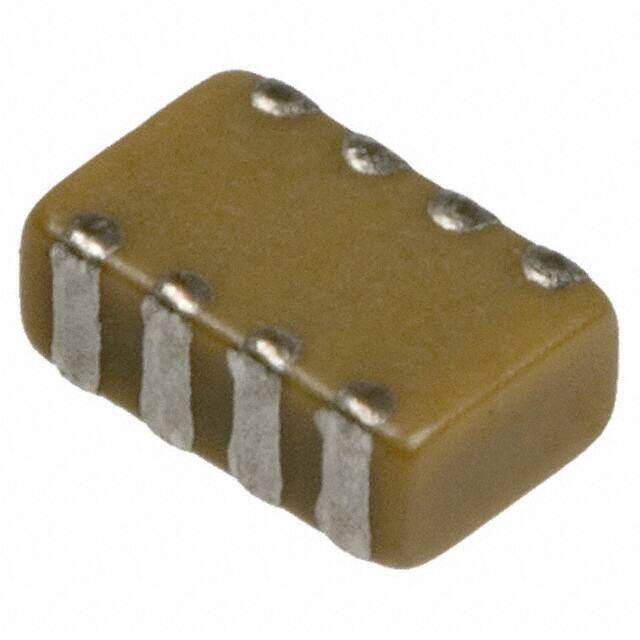

W2A2YC104MAT2F
RoHS
RoHS compliant
RoHS compliantPackage 0508 (1220 Metric)
Category Capacitors / Capacitor Networks, Arrays
Description
0508 (1220Metric) ARRAY/NETWORK CAPACITOR IPC 16V 0.1muF ±20% X7R
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.155227
≥1 USD $0.155227
≥200 USD $0.060071
≥500 USD $0.05796
≥1000 USD $0.056916
Inventory: 4093
Minimum: 1
-
+
Technical Details
Technical
Size / Dimension 0.051Lx0.083W 1.30mmx2.10mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Capacitance 0.1μF
Voltage - Rated DC 16V
Packing Method TR, PAPER, 7 INCH
Number of Functions 2
Terminal Pitch 1mm
Capacitor Type ARRAY/NETWORK CAPACITOR
Number of Elements 1
Temperature Characteristics Code X7R
Circuit Type Isolated
Number of Capacitors 2
Series IPC
Published 2010
Packaging Tape & Reel (TR)
Dimensions
Height 940μm
Height Seated (Max) 0.037 0.95mm
Width 1.3mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Dielectric Material Ceramic
Terminal Shape WRAPAROUND
Package / Case 0508 (1220 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
