211-60002
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires - Management / Cable Supports and Fasteners
Description

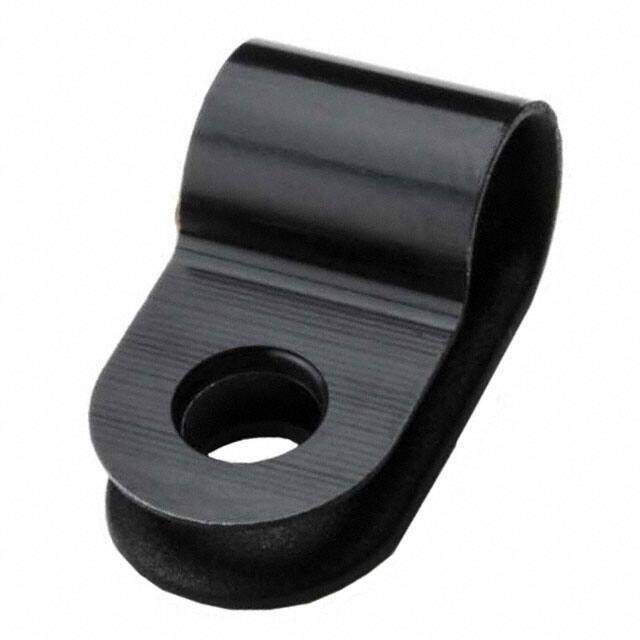

CBL CLAMP P-TYPE BLACK FASTENER
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.13816
≥100 USD $0.114048
≥500 USD $0.105248
≥1000 USD $0.101728
≥3000 USD $0.087736
Inventory: 1333
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Screw
Mounting Type Fastener
Package / Case 100
Material Polyamide (PA66), Nylon 6/6
Bundle Center to Mounting Center 0.394 (10.00mm)
Technical
Packaging Bulk
Published 2004
Series HP
Feature Heat Stabilized
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Clamp, P-Type
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Halogen Free Halogen Free
Hole Diameter 4.2 mm
Screw Size 0.165 4.20mm
Opening Size 0.256 6.50mm
Dimensions
Width 0.394 10.00mm
Material Thickness 0.039 1.00mm
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
