74270091 image
Favorite
74270091 image
Favorite
RoHS
RoHS RoHS compliant
Package Axial
Category Filters / Cable Ferrites

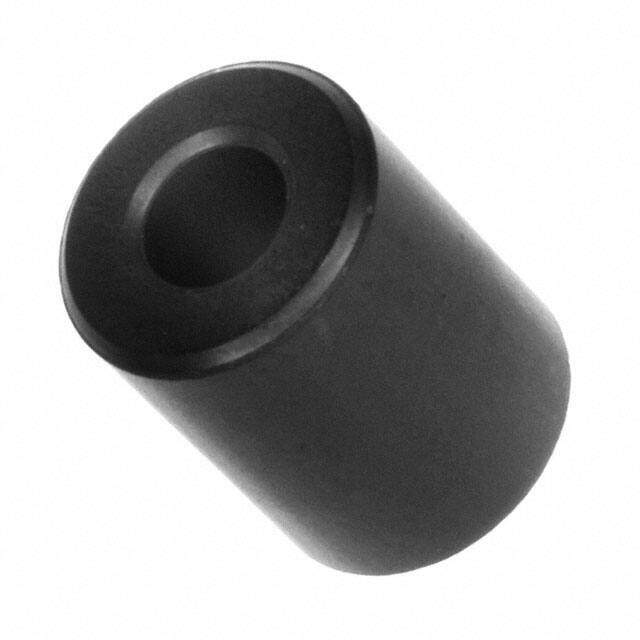

Description FERRITE CORE 170 OHM SOLID 9.5MM
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.815717
≥1 USD $4.815717
≥256 USD $1.922086
≥512 USD $1.857754
≥1024 USD $1.826244
Inventory: 1244
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging
Package / Case Axial
Material 3W800
Weight 10.296008g

Technical

Packaging Bulk
Series WE-AFB
Tolerance 25%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Axial
Type Round
Test Frequency 100MHz
Impedance 170Ohm
Design Solid
Impedance @ Frequency 170Ohm @ 100MHz
Outside Diameter 17.5 mm
Outer Dimension 0.688 Dia (17.50mm)

Dimensions

Height 12.7mm
Length 0.500 12.70mm
Diameter - Inside 9.5 mm
Diameter - Inner 0.374 Dia (9.50mm)

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
