53112883
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires - Management / Cable and Cord Grips
Description

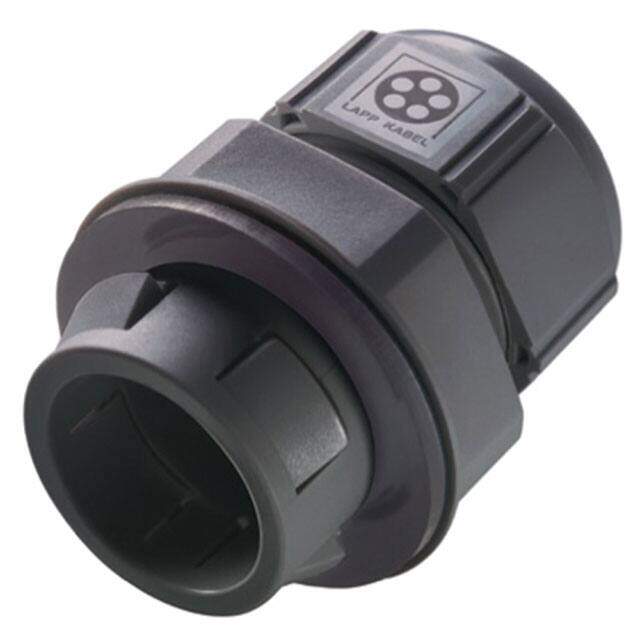

CABLE GLAND CLICK 20 BK
PDF
/
Buying Options
Total Price: USD $3.31
Unit Price: USD $3.3088
≥1 USD $3.3088
≥10 USD $3.00696
≥100 USD $2.84768
≥500 USD $2.78168
≥1000 USD $2.649152
≥3000 USD $2.332
Inventory: 3692
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Cable
Material Polyamide
Technical
Published 2007
Series SKINTOP?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Cable Gland
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Halogen Free Not Halogen Free
Thread Size M20
Wire/Cable Diameter 7 mm
Cable Diameter 0.28 ~ 0.51 (7.0mm ~ 13.0mm)
Panel Hole Size 0.800 20.3mm
Dimensions
Length 45.5mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings IP68
