53112620
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires - Management / Cable and Cord Grips
Description

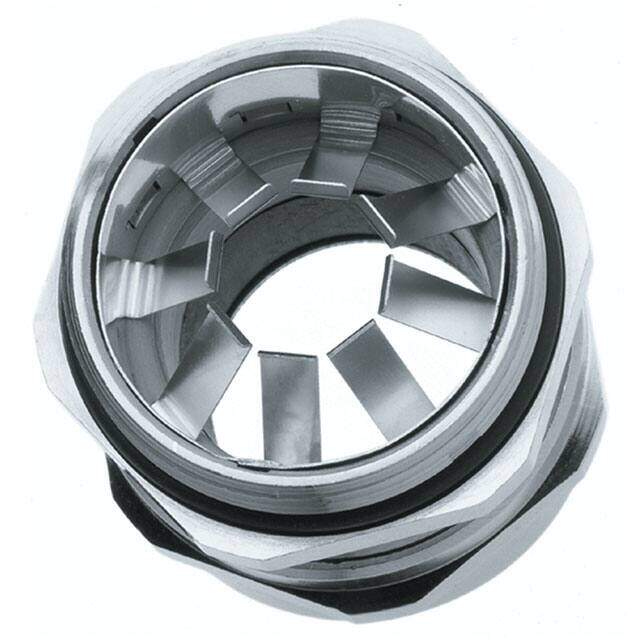

CABLE GLAND MS-SC-M 16
PDF
/
Buying Options
Total Price: USD $10.53
Unit Price: USD $10.5336
≥1 USD $10.5336
≥10 USD $9.13088
≥100 USD $8.833088
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Cable
Material Brass, Nickel Plated
Technical
Published 2006
Series SKINTOP?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Cable Gland
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Color Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Ingress Protection IP68/69K - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12
Body Plating Nickel
Halogen Free Not Halogen Free
Thread Size M16x1.5
Wire/Cable Diameter 4.5 mm
Cable Diameter 0.18 ~ 0.35 (4.5mm ~ 9.0mm)
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings IP68
