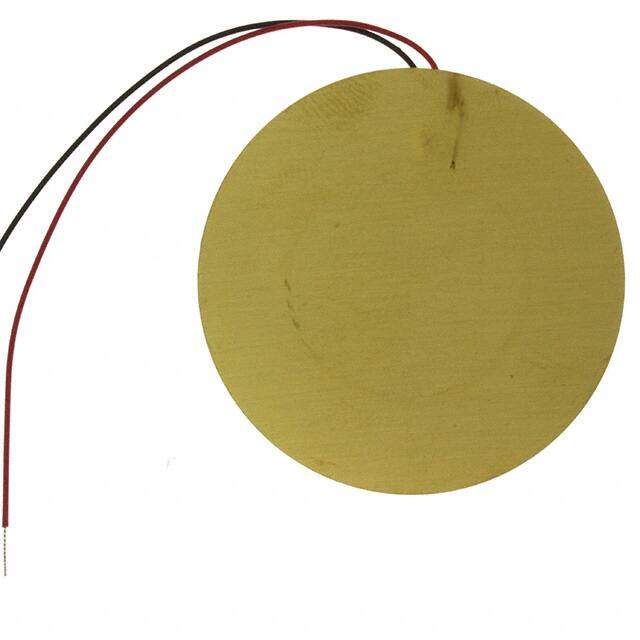

CEB-44D06
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Buzzer Elements, Piezo Benders
Description
BUZZ ELEM PIEZO STD 0.6KHZ 20V
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.29448
≥100 USD $1.1968
≥500 USD $1.12552
≥1000 USD $1.056616
≥3000 USD $0.979
Inventory: 172
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Standard
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2011
Series CEB
Size / Dimension 1.732Dia 44.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Standard
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Capacitance 70nF
Frequency 600Hz
Voltage - Input (Max) 20V p-p
Impedance 1kOhms
Max Input Voltage 20V
Capacitance @ Frequency 70000pF @ 120Hz
Self Resonant Frequency 600Hz
Washable No
Dimensions
Diameter 44mm
Height 230μm
Thickness 230μm
Diameter - Inside 25 mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
