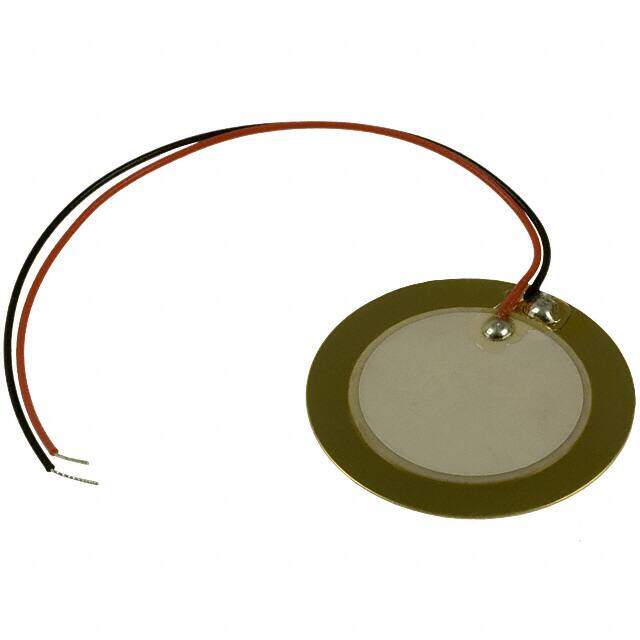

CEB-27D44
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Buzzer Elements, Piezo Benders
Description
Audio Piezo 20Vp-p 4100Hz to 5100Hz Wire Lead Through Hole
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.77792
≥100 USD $0.719488
≥500 USD $0.677424
≥1000 USD $0.636592
≥3000 USD $0.590515
Inventory: 11030
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Standard
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2011
Series CEB
Size / Dimension 1.063Dia 27.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Standard
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Capacitance 16nF
Frequency 4.6kHz
Voltage - Input (Max) 20V p-p
Impedance 250Ohms
Max Input Voltage 20V
Capacitance @ Frequency 16000pF @ 1kHz
Self Resonant Frequency 4.6kHz
Washable No
Dimensions
Diameter 27mm
Height 530μm
Thickness 530μm
Diameter - Inside 19.8 mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
