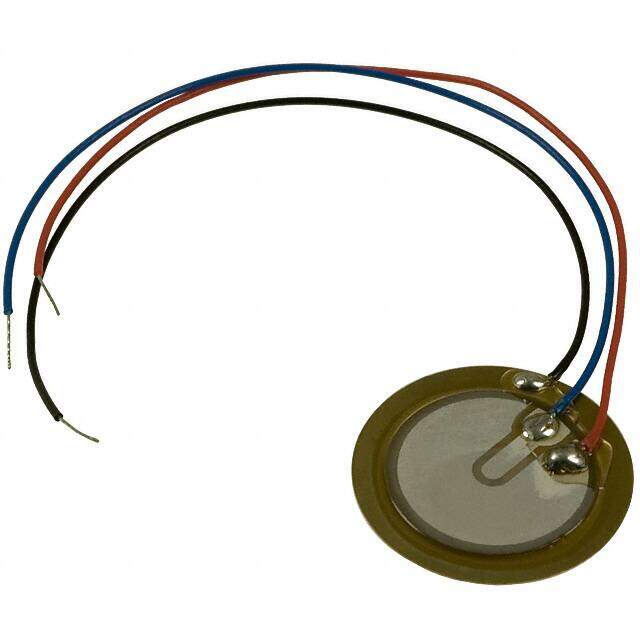

CEB-20FD64
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Buzzer Elements, Piezo Benders
Description
BUZZ ELEM PIEZO FEDBK 6.4KHZ 30V
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.78936
≥100 USD $0.729696
≥500 USD $0.705056
Inventory: 1495
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Diameter - Inside 15 mm
Thickness 430μm
Height 430μm
Diameter 20mm
Technical
Washable No
Self Resonant Frequency 6.4kHz
Capacitance @ Frequency 10000pF @ 1kHz
Max Input Voltage 30V
Impedance 400Ohms
Voltage - Input (Max) 30V p-p
Frequency 6.4kHz
Capacitance 10nF
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Type Feedback
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.787Dia 20.00mm
Series CEB
Published 2011
Packaging Bulk
Operating Temperature -20°C~70°C
Supply Chain
Factory Lead Time 14 Weeks
