Q181310PCE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Boxes, Enclosures, Racks / Boxes
Description

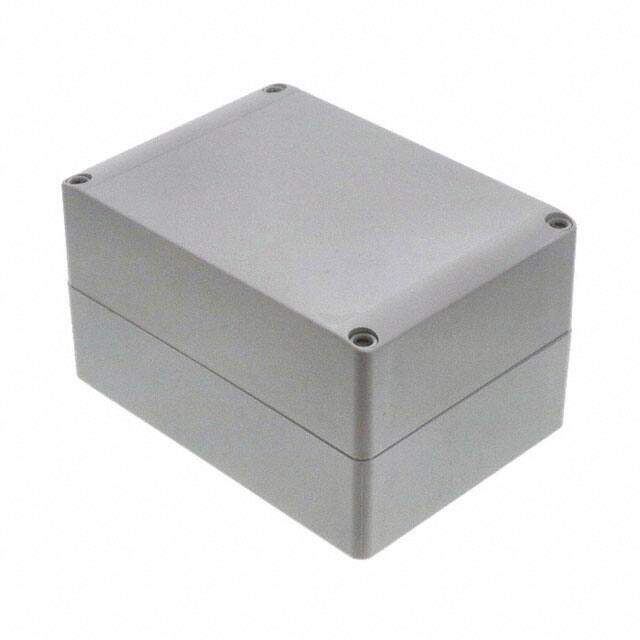

BOX PLASTIC GRAY 6.89"L X 4.92"W
PDF
/
Buying Options
Total Price: USD $70.88
Unit Price: USD $70.8752
≥1 USD $70.8752
≥10 USD $66.44704
≥100 USD $62.01712
≥500 USD $60.909376
≥1000 USD $59.801984
≥3000 USD $58.916088
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Screw
Material Plastic, Polycarbonate
Housing Material Polycarbonate
Weight 1.2lbs 544.3g
Technical
Packaging Bulk
Published 2010
Size / Dimension 6.890Lx4.921W 175.00mmx125.00mm
Feature Card Guides, PCB Supports, Sealing Gasket
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Gray
Housing Color Grey
Design Cover Included
Container Type Box
Area (L x W) 33.9in2 (219cm2)
Dimensions
Height 3.937 100.00mm
Width 125mm
Thickness 0.118 3.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP67, NEMA 4,4X,6,12,13, UL-508A
