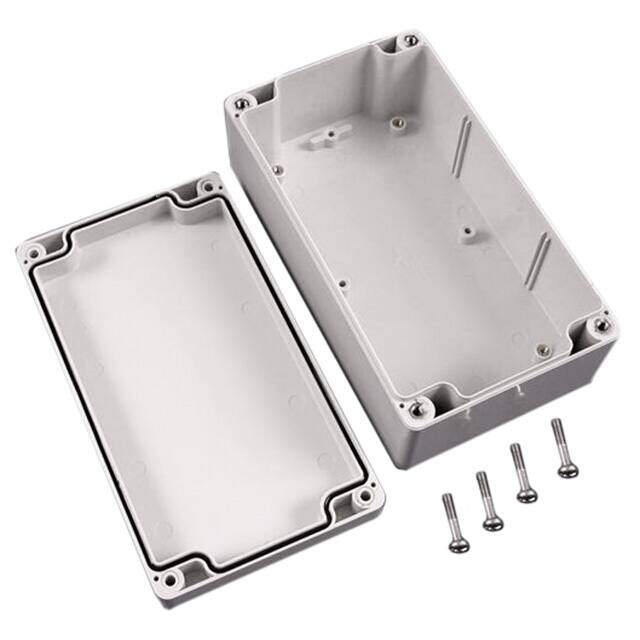

1554J2GY
RoHS
RoHS compliant
RoHS compliantPackage /
Category Boxes, Enclosures, Racks / Boxes
Description
Enclosures, Boxes, & Cases 6.3 x 3.5 x 2.4 Poly Flat Lid
PDF
/
Buying Options
Total Price: USD $21.18
Unit Price: USD $21.1816
≥1 USD $21.1816
≥10 USD $19.93728
≥100 USD $18.6912
≥500 USD $17.445472
≥1000 USD $17.133776
≥3000 USD $16.822344
Inventory: 189
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP66, NEMA 4,4X,12,13, UL-508
Flammability Rating UL94 5VA
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 5VA
Dimensions
Thickness 0.118 3.00mm
Width 89mm
Length 159.9946mm
Height 2.362 60.00mm
Technical
Area (L x W) 22.3in2 (144cm2)
Container Type Box
Design Cover Included
Shipping Info Shipped from Digi-Key
Housing Color Grey
Approval Agency UL
Depth 60.96mm
Color Gray
Min Operating Temperature -40°C
Max Operating Temperature 120°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Card Guides, PCB Supports, Watertight
Size / Dimension 6.299Lx3.543W 159.99mmx89.99mm
Series 1554
Published 2004
Packaging Bag
Physical
Body Material Polycarbonate
Weight 0.53lb 240.4g
Housing Material Polycarbonate
Material Plastic, Polycarbonate
Mount Wall
Supply Chain
Factory Lead Time 4 Weeks
