PNR-2607-C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Boxes, Enclosures, Racks / Boxes
Description

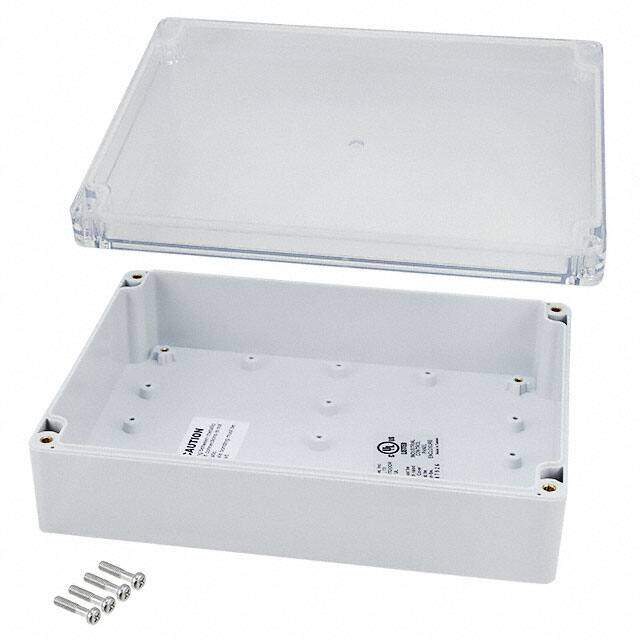

Enclosures, Boxes, & Cases 7.87 x 5.91 x 2.17 LT Gray Clear Cover
PDF
/
Inventory: 6330
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP65, NEMA 1,2,4,4X,12,13, UL-508
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB
Dimensions
Width 149.733mm
Length 199.644mm
Height 2.180 55.37mm
Technical
Area (L x W) 46.3in2 (299cm2)
Container Type Box
Design Cover Included
Housing Color Grey
Depth 41.656mm
Color Gray, Clear Cover/Door
Min Operating Temperature -40°C
Max Operating Temperature 120°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Card Guides, PCB Supports
Size / Dimension 7.860Lx5.895W 199.64mmx149.73mm
Series PNR
Packaging Bulk
Physical
Weight 0.875lb 396.89g
Housing Material Polycarbonate
Material Plastic, Polycarbonate
Mount Wall
Supply Chain
Factory Lead Time 11 Weeks
