PN-1340-C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Boxes, Enclosures, Racks / Boxes
Description

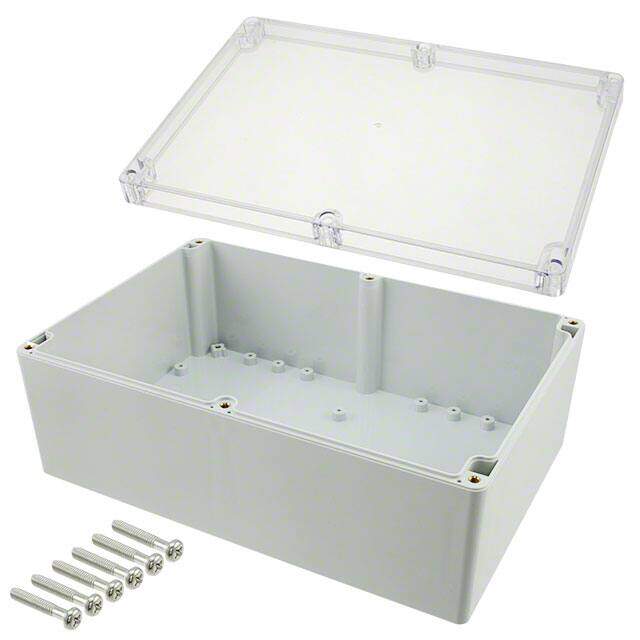

Electrical Enclosures Box, Clear, Polycarb NEMA 9.45x6.3x3.54
PDF
/
Inventory: 1648
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP65, NEMA 1,2,4,4X,12,13, UL-508
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB
Dimensions
Thickness 0.138 3.50mm
Height 3.543 90.00mm
Technical
Area (L x W) 59.5in2 (384cm2)
Container Type Box
Design Cover Included
Shipping Info Shipped from Digi-Key
Housing Color Grey
Approval Agency UL
Depth 89.916mm
Color Gray, Clear Cover/Door
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Card Guides, PCB Supports
Size / Dimension 9.449Lx6.299W 240.00mmx160.00mm
Series PN
Packaging Bulk
Physical
Weight 1.4lbs 635g
Housing Material Polycarbonate
Material Plastic, Polycarbonate
Number of Pins 12
Mount Wall
Supply Chain
Factory Lead Time 11 Weeks
