NBA-10144
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Boxes, Enclosures, Racks / Boxes
Description

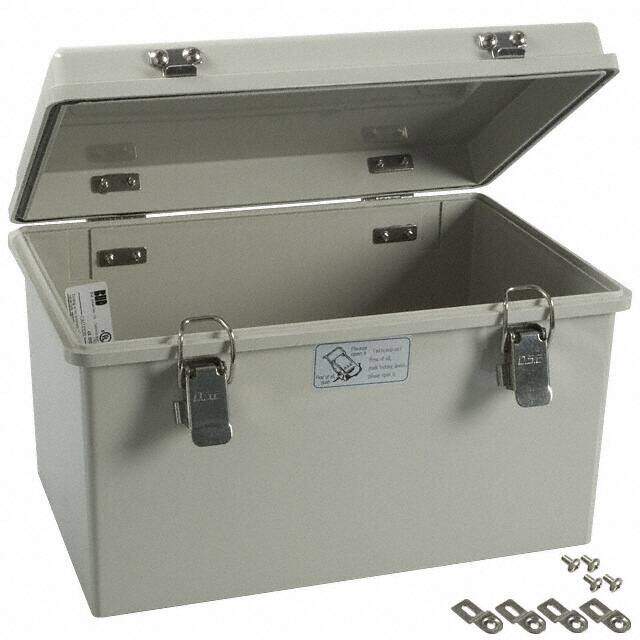

BOX ABS GRAY 11.83"L X 7.85"W
PDF
/
Buying Options
Total Price: USD $80.74
Unit Price: USD $80.74
≥1 USD $80.74
≥10 USD $67.232
≥100 USD $59.674912
Inventory: 206
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Wall
Package / Case Metal
Material Plastic, ABS
Housing Material Polycarbonate
Weight 3.8lbs 1.7kg
Technical
Packaging Bulk
Series NBA
Size / Dimension 11.832Lx7.848W 300.53mmx199.34mm
Feature PCB Supports, Stainless Steel Hinges
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Max Operating Temperature 70°C
Min Operating Temperature -40°C
Color Gray
Depth 300.5328mm
Housing Color Grey
Shipping Info Shipped from Digi-Key
Design Hinged Door, Lid
Container Type Box
Area (L x W) 92.9in2 (599cm2)
Dimensions
Height 7.085 179.96mm
Length 300.5328mm
Width 199.3392mm
Thickness 0.140 3.56mm
Compliance
Material Flammability Rating UL94 5VB
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 5VB
Lead Free Lead Free
Ratings IP66, NEMA 1,2,4,4X,12,13
