RoHS
RoHS compliant
RoHS compliantPackage /
Category Boxes, Enclosures, Racks / Box Components
Description

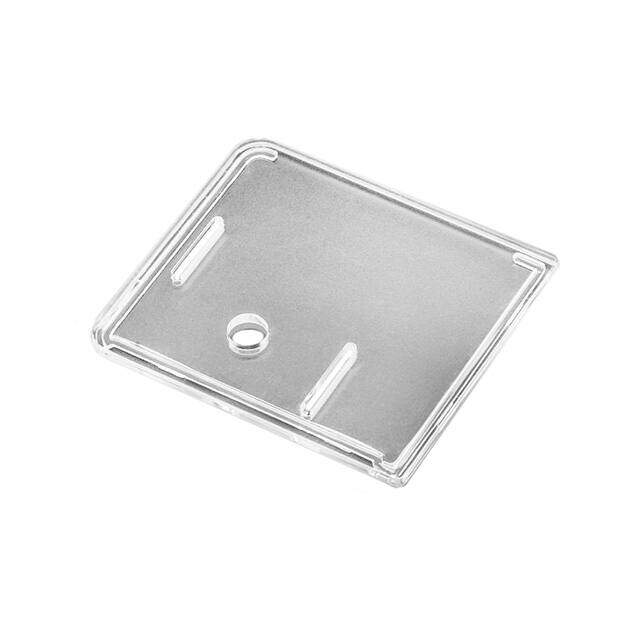

RASPBERRY PI MODEL A+ CASE LID -
PDF
/
Buying Options
Total Price: USD $17.56
Unit Price: USD $17.556
≥1 USD $17.556
Inventory: 162
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.236 inch
Plating Thickness FLASH inch
Technical
Mating Contact Row Spacing 0.1 inch
Contact Pattern RECTANGULAR
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
PCB Contact Row Spacing 2.54 mm
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 3A
Body Depth 0.512 inch
Operating Temperature (Min) -55°C
Contact Gender MALE
Body Breadth 0.197 inch
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Body Length or Diameter 3.8 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Terminal Pitch 2.54mm
Total Number of Contacts 76
Contact Finish - Mating AU ON NI
Subcategory Headers and Edge Type Connectors
Additional Feature ROHS COMPLIANT
Number of Rows 2
Color Clear
Type Cover, Lid
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Raspberry Pi A+
JESD-609 Code e4
Size / Dimension 2.900Lx2.600W x 0.200 H 73.66mmx66.04mmx5.08mm
Series PI
Physical
Mounting Style STRAIGHT
Material Polycarbonate (PC)
