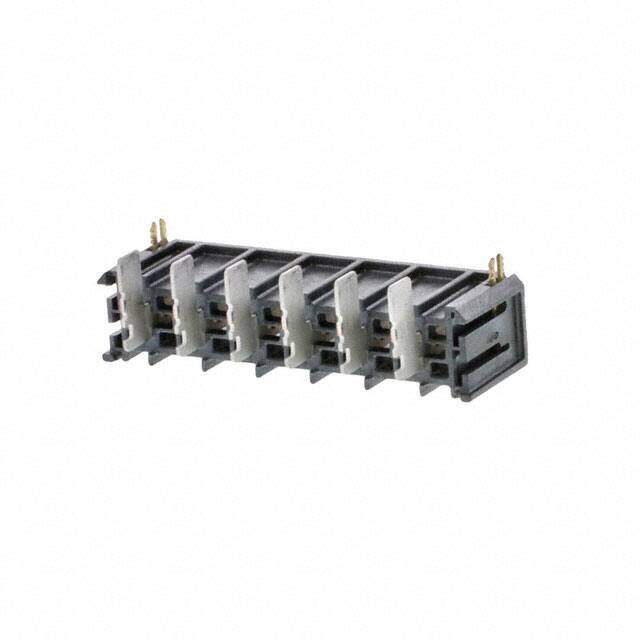

1720430602
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Blade Type Power Connectors
Description
CONN HDR 6POS 7.50MM R/A SLDR
PDF
/
Buying Options
Total Price: USD $6.51
Unit Price: USD $6.512
≥1 USD $6.512
≥10 USD $5.69712
≥100 USD $4.612203
≥500 USD $3.798291
Inventory: 2809
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 100.0μin 2.54μm
Technical
Contact Finish Silver
Current Rating 30A
Orientation Right Angle
Pitch 0.295 7.50mm
Fastening Type Locking Ramp
Voltage - Rated 600V
Number of Rows 1
Color Black
Number of Positions 6
Connector Type Header, Male Blades
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Finger-Proof
Series Super Sabre 172043
Published 2014
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
