1720430508
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Blade Type Power Connectors
Description

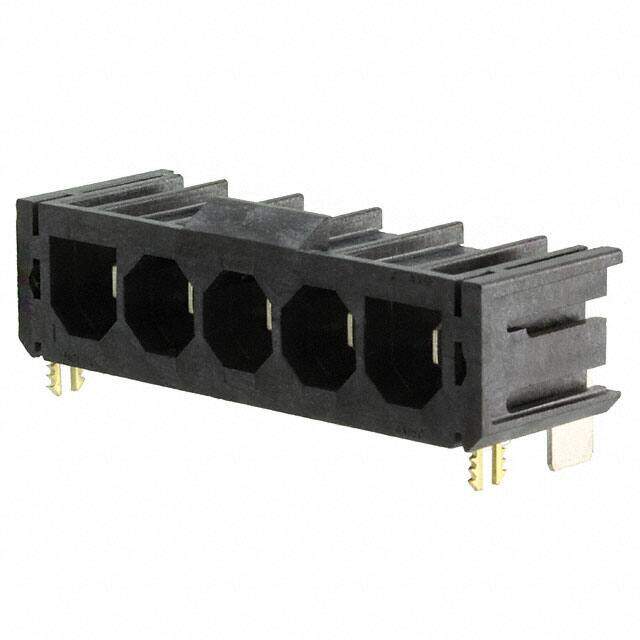

CONN HDR 5POS 7.50MM R/A SLDR
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.4784
≥1 USD $1.4784
≥10 USD $1.3552
Inventory: 666
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper
Mounting Type Through Hole, Right Angle
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2014
Series Super Sabre 172043
Feature Board Lock
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Male Blades
Number of Positions 5
Color Black
Number of Rows 1
Voltage - Rated 600V
Fastening Type Locking Ramp
Current Rating (Amps) 30A
Pitch 0.295 7.50mm
Contact Finish Silver
Dimensions
Contact Finish Thickness 100.0μin 2.54μm
Compliance
RoHS Status ROHS3 Compliant
