TR2A
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Barrel - Audio Connectors
Description
Conn Phone Jack F 2 POS Solder ST Panel Mount 3 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $4.58
Unit Price: USD $4.5848
≥1 USD $4.5848
≥10 USD $4.14568
≥100 USD $3.916
≥500 USD $3.820608
≥1000 USD $3.62956
≥3000 USD $3.247526
Inventory: 1008
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Chassis Mount, Panel
Mounting Type Panel Mount
Package / Case Metal
Housing Material Plastic
Body Material Copper Alloy
Contact Material - Plating Silver
Technical
Operating Temperature -20°C~65°C
Packaging Bulk
Published 2005
Series Micro-Jax?
Feature Mounting Hardware, Thread Lock
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
Termination Solder Eyelet(s)
Connector Type Phone Jack
Gender Female
Voltage - Rated 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Straight
Shielding Unshielded
Current Rating 125A
Number of Contacts 2
Max Voltage Rating (AC) 125V
Max Current Rating 120mA
Number of Ports 1
Number of Poles 2
Thread Size #10-48
Number of Positions/Contacts 2 Conductors, 3 Contacts

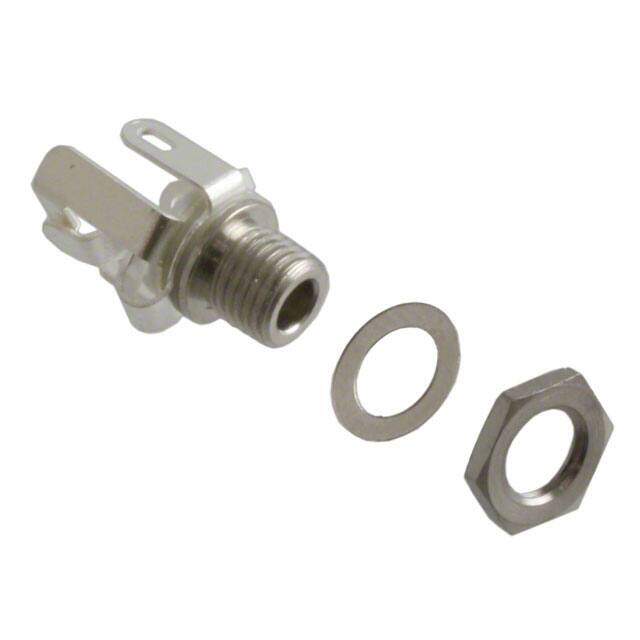

Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Internal Switch(s) Single Switch
Body Color Black
Panel Hole Size 0.190 4.83mm
Industry Recognized Mating Diameter 2.46mm ID (0.097)
Actual Diameter 0.101 (2.57mm)
Signal Lines Mono
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
