380
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Barrel - Audio Connectors
Description

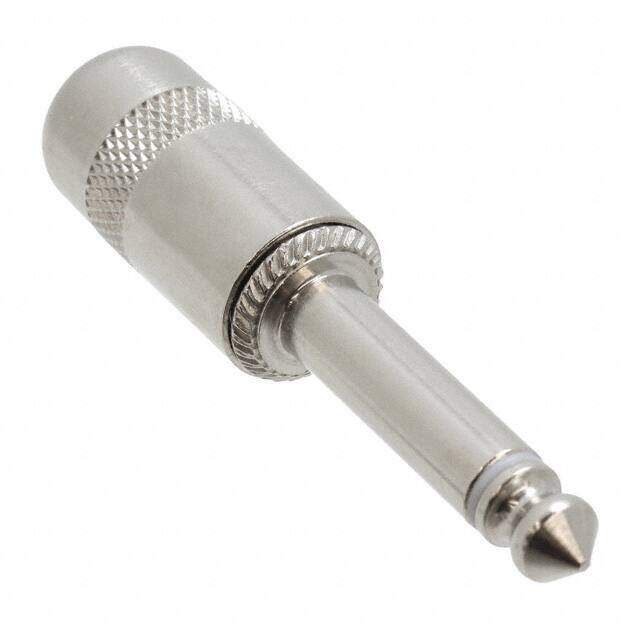

Conn Phone Plug M 2 POS Solder Lug ST Cable Mount 2 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $5.97
Unit Price: USD $5.9664
≥1 USD $5.9664
≥10 USD $5.37064
≥100 USD $4.79996
≥500 USD $4.004
Inventory: 732
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 57.15mm
Technical
Mating Length/Depth 1.188 30.20mm
Signal Lines Mono
Actual Diameter 0.250 (6.35mm)
Industry Recognized Mating Diameter 6.35mm (0.250, 1/4) - Headphone
Body Color Silver
Internal Switch(s) Does Not Contain Switch
Includes 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Number of Positions/Contacts 2 Conductors, 2 Contacts
Cable Opening 0.297 (7.54mm)
Number of Poles 2
Number of Ports 1
Shielding Shielded
Orientation Straight
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Connector Type Phone Plug
Termination Solder Eyelet(s)
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Series Lug?-Plug
Packaging Bulk
Physical
Contact Material - Plating Nickel
Body Material Copper Alloy
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
