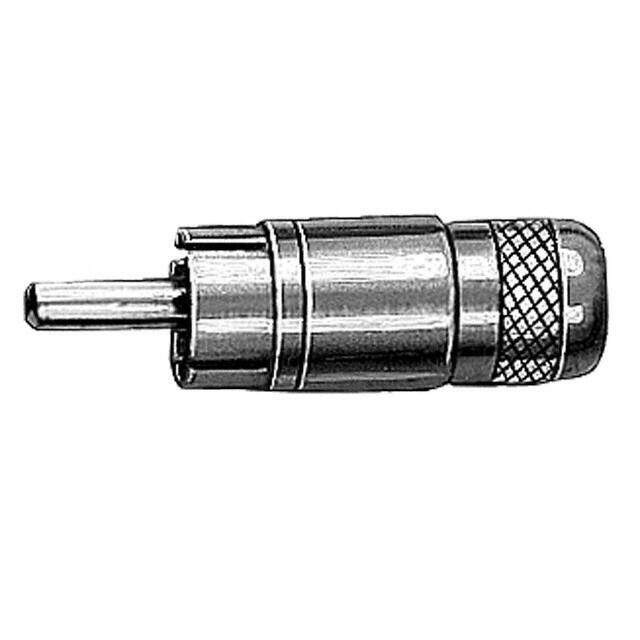

3507 image
Favorite
3507 image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Barrel - Audio Connectors
Description Conn Phono Plug M 2 POS ST Cable Mount 2 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.224
≥1 USD $4.224
≥10 USD $3.83504
≥100 USD $2.871862
≥500 USD $2.607
Inventory: 1108
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Length 33.35mm

Technical

Signal Lines Mono
Actual Diameter 0.125 (3.18mm ID), 0.370 (9.40mm OD)
Industry Recognized Mating Diameter 3.20mm ID, 9.00mm OD (RCA)
Body Color Silver
Internal Switch(s) Does Not Contain Switch
Includes 2 pcs - 1 Connector, 1 Handle
Number of Positions/Contacts 2 Conductors, 2 Contacts
Cable Opening 0.200 (5.08mm)
Cable Length 17.5mm
Number of Ports 1
Coupling Type SNAP
Mating Information 3505F
Shielding Unshielded
Orientation Straight
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Color Black
Connector Type Phono (RCA) Plug
ECCN Code EAR99
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 3507
Packaging Bulk

Physical

Contact Material - Plating Nickel
Body Material Copper Alloy
Housing Material Copper Alloy
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
