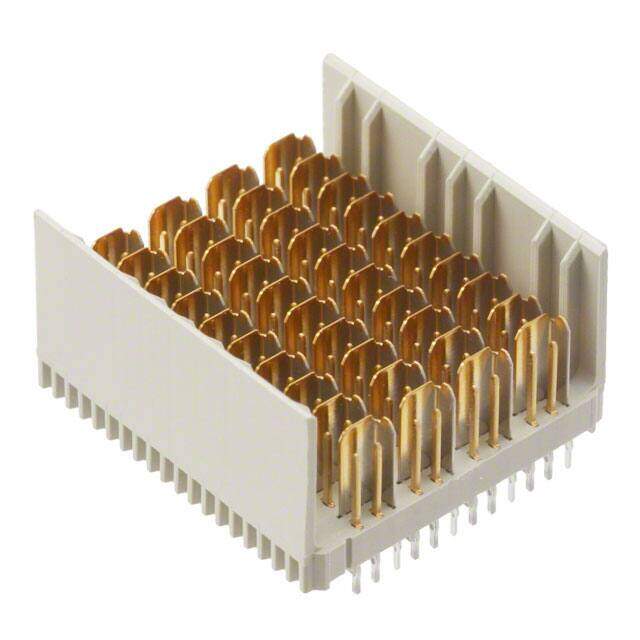

6469002-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN HDR HIGH SPEED 120POS PCB
PDF
/
Buying Options
Total Price: USD $14.69
Unit Price: USD $14.6872
≥1 USD $14.6872
≥10 USD $14.37744
≥100 USD $13.9953
≥500 USD $13.30692
≥1000 USD $12.006808
≥3000 USD $11.930362
Inventory: 209
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Length 24.95mm
Technical
Number of Pairs 40
Make First / Break Last No
Connector Usage Backplane
Number of Columns 10
Contact Layout, Typical 80 Single Signal, 40 Ground
Circuit Application Signal
Contact Pattern RECTANGULAR
Durability 250 Cycles
Connector Style High Speed
Dielectric Withstanding Voltage 650VAC V
Polarization Key POLARIZED HOUSING
Max Current Rating 700mA
Max Voltage Rating (AC) 250V
Body/Shell Style RECEPTACLE
Row Spacing 1.5 mm
Contact Resistance 50mOhm
Contact Style SQ PIN-SKT
Operating Supply Voltage 250V
Housing Color Grey
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Lead Pitch 2.5mm
Number Of PCB Rows 12
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Current Rating 700mA
Number of Positions Loaded All
Depth 23.43mm
Shielding Shielded
Orientation Vertical
Total Number of Contacts 80
Pitch 0.098 2.50mm
Current Rating (Amps) 0.700A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Gender Male
Number of Rows 8
Number of Positions 120
Connector Type Header, Male Pins and Blades
ECCN Code EAR99
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Z-PACK HM-Zd
Published 2004
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Housing Material Polyester
Number of Pins 80
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 months ago)
Factory Lead Time 5 Weeks
