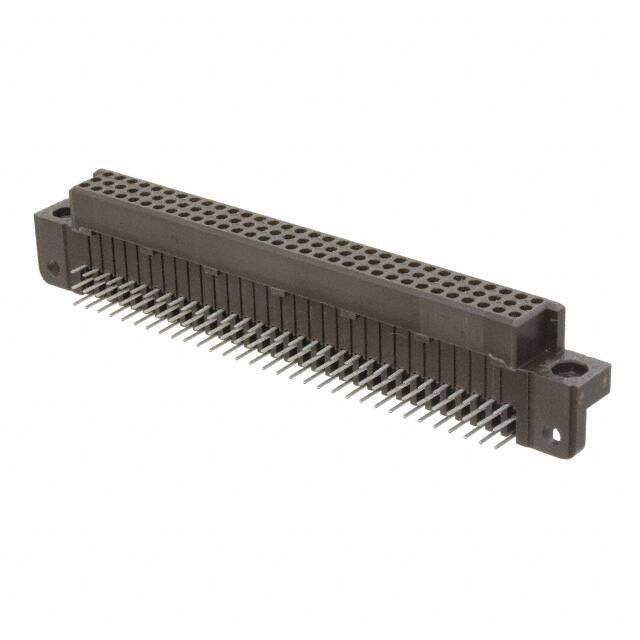

5533268-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
High Speed / Modular Connectors RCPT 96P 3ROW R/A HDI
PDF
/
Buying Options
Total Price: USD $51.12
Unit Price: USD $51.1192
≥1 USD $51.1192
≥10 USD $42.1916
≥100 USD $39.216672
≥500 USD $37.052928
≥1000 USD $36.241568
Inventory: 717
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Plating Tin, Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
Underplate Material Nickel
PCB Mount Alignment With
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 1998
Series HDI (High Density Interconnect)
Feature Mating Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 96
Color Natural
Number of Rows 3
Gender Receptacle
Pitch 0.100 2.54mm
Orientation Right Angle
Number of Positions Loaded All
Contact Finish Gold
Lead Pitch 2.54mm
Housing Color Brown, Black
Lead Length 3.048mm
Insulation Resistance 3MOhm
Row Spacing 2.54 mm
ELV Compliant
Connector Style High Density (HDC, HDI, HPC)
Contact Current Rating 3A
Circuit Application Signal
Mating Post Length 6.98mm
Mating Alignment Without
Stackable No
Dimensions
Height 18.39mm
Length 100.33mm
Width 18.4mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
Contact Finish Thickness - Mating 760 nm
Length - Tail 3.05mm
PCB Thickness 2.36mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
