5223524-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description

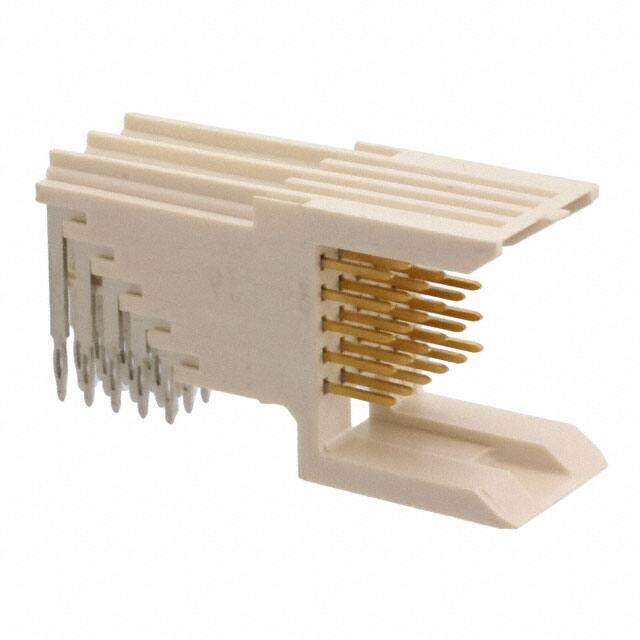

30 Position 2 mm Header Right Angle Through Hole Press Fit Futurebus+ Connector
PDF
/
Buying Options
Total Price: USD $13.57
Unit Price: USD $13.5696
≥1 USD $13.5696
≥10 USD $13.28976
≥100 USD $12.936
≥500 USD $12.29976
≥1000 USD $11.098032
≥3000 USD $11.027386
Inventory: 371
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Bronze
Contact Plating Gold, Tin
Mount Edge, Through Hole
Mounting Type Board Edge, Through Hole, Right Angle
Housing Material Polymer
PCB Mounting Orientation Right Angle
PCB Mount Retention Without
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 1999
Series Z-PACK
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
ECCN Code EAR99
Connector Type Header, Male Pins
Color Natural
Number of Rows 5
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 30
Orientation Right Angle
Number of Positions Loaded All
Number of Conductors ONE
Contact Finish Gold
Voltage - Rated AC 30V
Reliability COMMERCIAL
Number Of PCB Rows 5
PCB Contact Pattern RECTANGULAR
Body Breadth 0.7 inch
Lead Length 3.36mm
Body Depth 1.339 inch
Operating Supply Voltage 30V
Contact Style SQ PIN-SKT
Insulation Resistance 5GOhm
Row Spacing 2 mm
Body/Shell Style PLUG
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Connector Style Futurebus
Contact Pattern RECTANGULAR
Insertion Force-Max .69778 N
Sealable No
Contact Current Rating 3A
Number of Signal Positions 30
Mating Post Length 5.75mm
Mating Alignment With
Dimensions
Height 13.47597mm
Length 11.88mm
Plating Thickness FLASH inch
Contact Finish Thickness - Mating 500 nm
Length - Tail 3.344037mm
PCB Thickness 1.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
