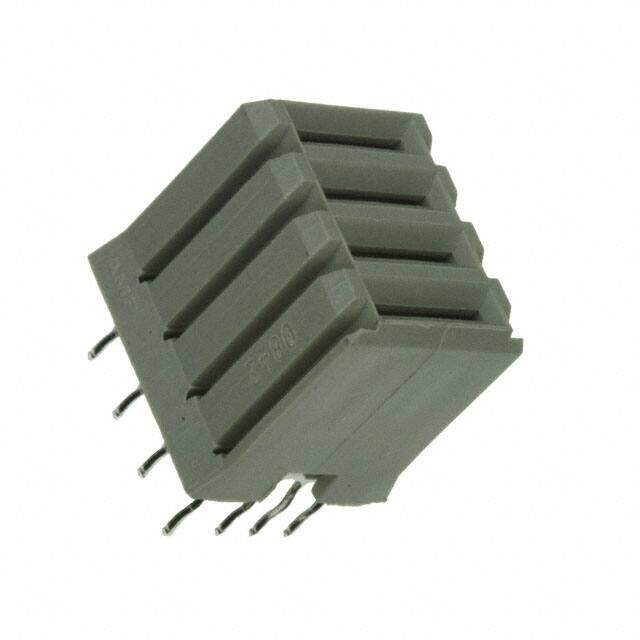

223995-1
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT UNIV PWR MODULE 4POS
PDF
/
Buying Options
Total Price: USD $44.57
Unit Price: USD $44.57115
≥1 USD $44.57115
≥10 USD $36.5712
≥100 USD $35.42835
≥500 USD $34.2855
≥1000 USD $33.14265
Inventory: 3092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 32 Weeks
Physical
Contact Material Bronze
Contact Plating Lead, Metal, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Housing Material Polyester
PCB Mounting Orientation Vertical
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2005
Series UPM (Universal Power Modules)
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Receptacle, Female Blade Sockets
Number of Positions 4
Color Gray
Number of Rows 1
Gender Receptacle
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Pitch 2.9972mm
Depth 12.5mm
Number of Positions Loaded All
Contact Finish Gold or Gold-Palladium
Housing Color Natural
Operating Supply Voltage 250V
Row Spacing 0 m
ELV Non-Compliant
Connector Style Blade Power
Contact Current Rating 10A
Contact Layout, Typical 4 Power
Connector Usage Backplane
Dimensions
Length 11.35mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
