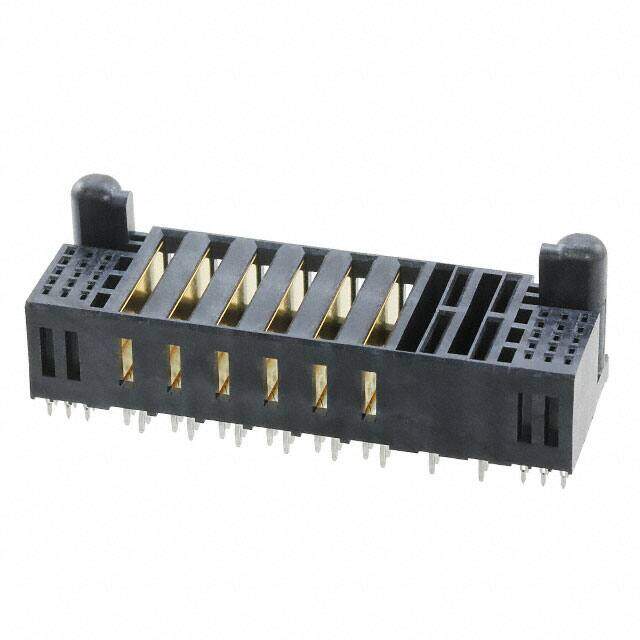

2204422-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT MULTI-BEAM 40POS PCB
PDF
/
Buying Options
Total Price: USD $28.74
Unit Price: USD $28.736094
≥1 USD $28.736094
≥10 USD $27.109527
≥100 USD $25.575028
≥500 USD $24.127381
≥1000 USD $22.761678
Inventory: 6523
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 76 nm
Technical
Contact Retention Without
Contact Layout, Typical 30 Signal, 10 Power
Number of Signal Positions 30
Number of Power Positions 10
Circuit Application Power
Sealable No
Connector Style Multi-Beam
Row Spacing 2.0066 mm
Operating Supply Voltage 60V
Housing Color Black
Number of Contacts 40
Contact Finish Gold or Gold-Palladium
Current Rating 75A
Number of Positions Loaded All
Orientation Vertical
Pitch 5mm
Gender Receptacle
Number of Rows 5
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 40
Connector Type Receptacle, Female Sockets and Blade Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Board Guide
Series MULTI-BEAM HD
Published 2016
Packaging Tray
Operating Temperature -40°C~125°C
Physical
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Mounting Type Through Hole
Contact Plating Metal, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 11 Weeks
