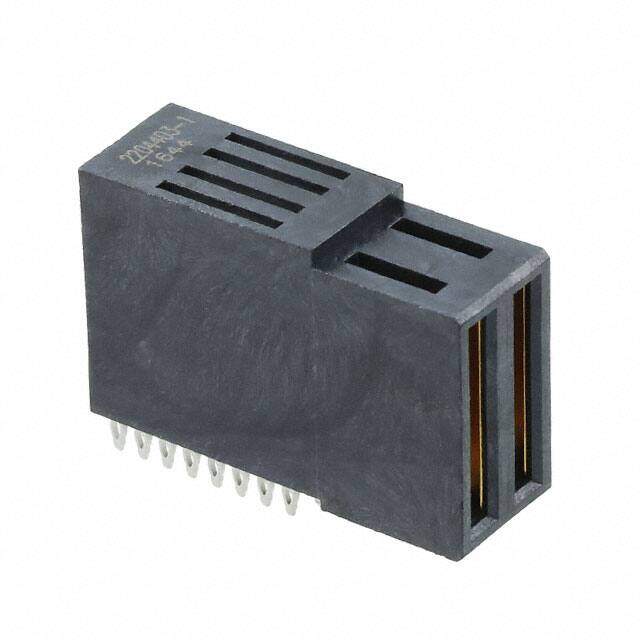

2204403-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT MULTI-BEAM 2POS PCB
PDF
/
Buying Options
Total Price: USD $12.18
Unit Price: USD $12.1792
≥1 USD $12.1792
≥10 USD $11.01496
≥100 USD $10.72368
≥500 USD $9.55812
≥1000 USD $9.499855
≥3000 USD $9.150178
Inventory: 174
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 76 nm
Technical
Contact Retention With
Contact Layout, Typical 2 Power
Number of Power Positions 2
Circuit Application Power
Sealable No
Connector Style Multi-Beam
Operating Supply Voltage 60V
Housing Color Black
Number of Contacts 2
Contact Finish Gold or Gold-Palladium
Current Rating 42A
Number of Positions Loaded All
Orientation Right Angle
Pitch 5mm
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 2
Connector Type Receptacle, Female Blade Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series MULTI-BEAM HD
Published 2015
Packaging Tray
Operating Temperature -40°C~125°C
Physical
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Mounting Type Through Hole, Right Angle
Contact Plating Metal, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 11 Weeks
