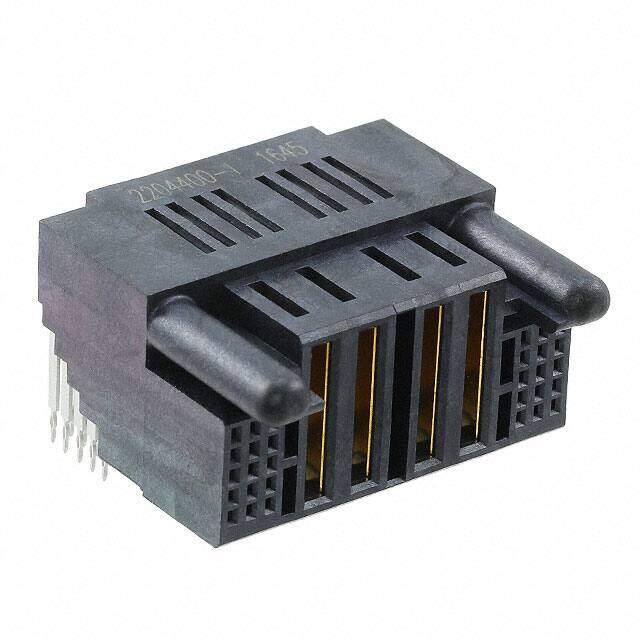

2204400-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT MULTI-BEAM 34POS PCB
PDF
/
Inventory: 2147
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Plating Metal, Tin
Mounting Type Through Hole, Right Angle
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2015
Series MULTI-BEAM HD
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Press-Fit
Connector Type Receptacle, Female Sockets and Blade Sockets
Number of Positions 34
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 5
Gender Receptacle
Pitch 5mm
Orientation Right Angle
Number of Positions Loaded All
Current Rating 372A
Contact Finish Gold or Gold-Palladium
Number of Contacts 34
Housing Color Black
Operating Supply Voltage 60V
Row Spacing 2 mm
Connector Style Multi-Beam
Sealable No
Circuit Application Power
Number of Power Positions 4
Number of Signal Positions 30
Contact Layout, Typical 30 Signal, 4 Power
Contact Retention With
Dimensions
Plating Thickness 76 nm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
