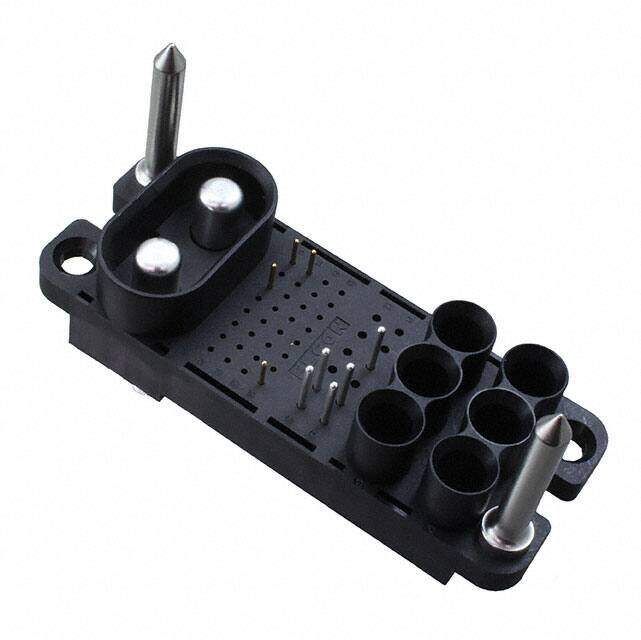

2085295-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
Conn Drawer Connector PL 8Power/44Signal POS Solder ST Thru-Hole 52 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $73.82
Unit Price: USD $73.8232
≥1 USD $73.8232
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Brass
Contact Plating Gold, Silver
Mounting Type Panel Mount
Housing Material Thermoplastic
Underplate Material Nickel
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series ELCON
Feature Guide Pin
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Male Pins
Number of Positions 52
Color Black
Voltage - Rated 250V
Orientation Straight
Depth 40.64mm
Number of Positions Loaded All
Plating Gold
Connector Style Top Drawer
Number of Ports 1
Sealable No
Circuit Application Power
Contact Layout, Typical 44 Signal, 8 Power
Dimensions
Plating Thickness 762 nm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
