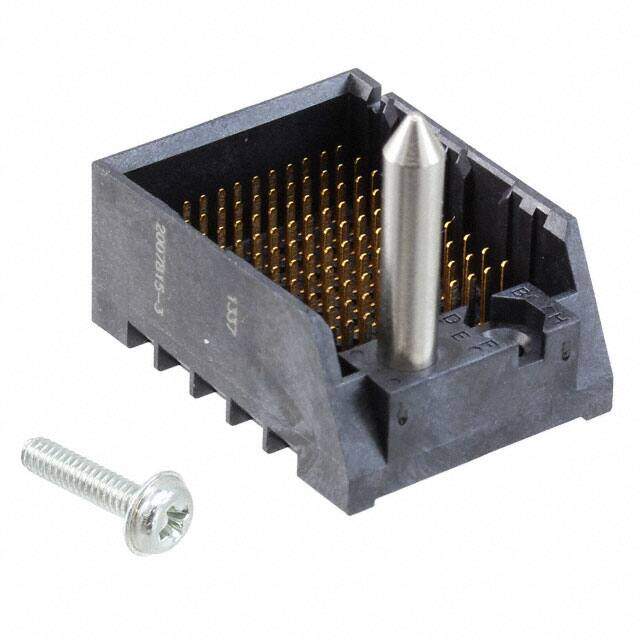

2007815-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
High Speed / Modular Connectors
PDF
/
Inventory: 9067
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Gold, Tin
Mounting Type Through Hole
Housing Material Polymer
Underplate Material Nickel
Technical
Operating Temperature -55°C~ 85°C
Packaging Tube
Published 2013
Series Impact
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Header, Male Pins
Number of Positions 120
Color Black
Number of Rows 12
Voltage - Rated DC 30V
Pitch 0.075 1.91mm
Orientation Vertical
Number of Positions Loaded All
Current Rating 750mA
Contact Finish Gold
Shrouding Fully Shrouded
Operating Supply Voltage 30V
Row Spacing 1.35 mm
ELV Compliant
Max Current Rating 750mA
Impedance 100Ohm
Connector Style Impact, Guide Right
Contact Current Rating 750mA
Circuit Application Signal
Data Rate 25 Gbps
Number of Signal Positions 80
Hole Diameter 381 μm
Number of Columns 10
Mating Alignment With
Make First / Break Last No
Differential Signaling Yes
Differential Pairs per Column 4
Number of Ground Positions 40
Dimensions
Height 24.6mm
Length 26.9mm
Width 20.8026mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
Length - Tail 1.4mm
PCB Thickness 1mm
Stack Height 11.95mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
