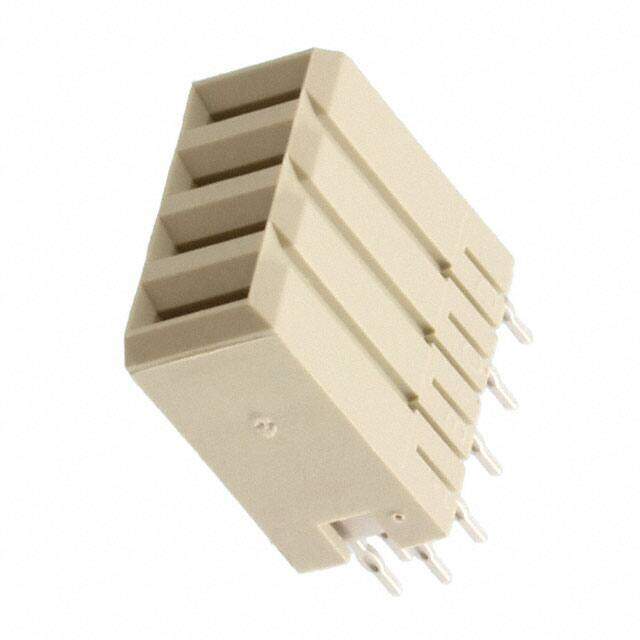

2-1903978-1
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description
CONN RCPT BLADE PWR 4POS PCB
PDF
/
Inventory: 2897
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case Module
Number of Pins 4
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Published 2015
Series UPM (Universal Power Modules)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Connector Type Receptacle, Female Blade Sockets
Number of Positions 4
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Natural
Number of Rows 1
Voltage - Rated 250V
Current Rating (Amps) 8A
Pitch 2.9972mm
Orientation Vertical
Number of Positions Loaded All
Current Rating 8A
Contact Finish Gold
Number of Contacts 4
Housing Color Grey
Operating Supply Voltage 250V
Row Spacing 0 m
ELV Compliant
Connector Style Blade Power
Sealable No
Contact Current Rating 8A
Circuit Application Power
Number of Power Positions 4
Number of Signal Positions 0
Contact Layout, Typical 4 Power
Contact Retention With
Connector Usage Backplane
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
